RSMF1JT43R0

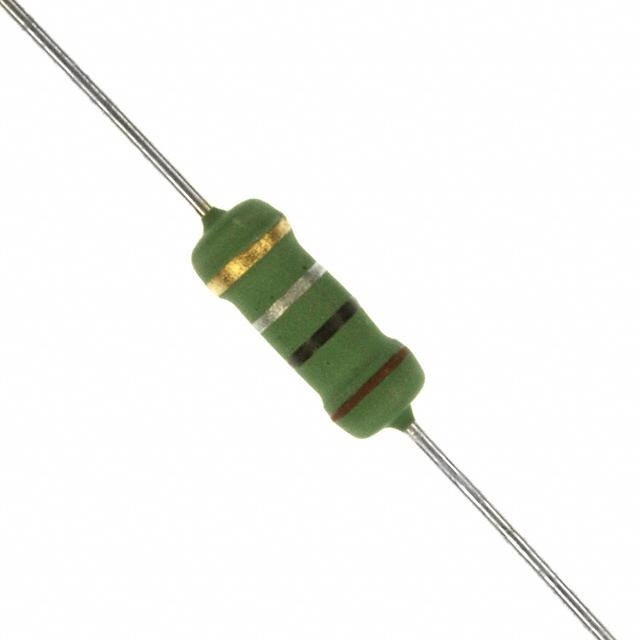

RSMF1JT43R0图片1
RSMF1JT43R0图片2
RSMF1JT43R0图片3
RSMF1JT43R0概述

43Ω ±5% 1W ±200ppm/℃ Φ3.20mm

43 Ohms ±5% 1W 轴向 通孔器 耐燃,安全 金属氧化物薄膜


得捷:
RES 43 OHM 5% 1W AXIAL


艾睿:
Do your through-hole printed circuit specifications require some resistance between components? SEI Stackpole Electronics can offer you a cost-effective solution with their RSMF1JT43R0 fixed single through-hole resistor. This product has a resistance value of 43 Ohm. This durable part has a power rating of 1 W. Its temperature coefficient is ±200 ppm/°C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 9 mm long. This device is made with metal oxide technology. It has a tolerance of 5%. The RSMF1JT43R0 part has an axial termination style. This part has an operating temperature of -55 to 200 °C.


Chip1Stop:
Res Metal Oxide 43 Ohm 5% 1W ±200ppm/ÂÂ℃ Conformal Coated AXL T/R


RSMF1JT43R0中文资料参数规格
技术参数

容差 ±5 %

额定功率 1 W

产品系列 RSMF

电阻 43 Ω

阻值偏差 ±5 %

工作温度Max 200 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

封装 Axial

外形尺寸

长度 9 mm

直径 Φ3.20mm

脚长度 28 mm

封装 Axial

物理参数

工作温度 -55℃ ~ 200℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 2500

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买RSMF1JT43R0
型号: RSMF1JT43R0
制造商: Stackpole Electronics
描述:43Ω ±5% 1W ±200ppm/℃ Φ3.20mm
