RSMF2JT68R0

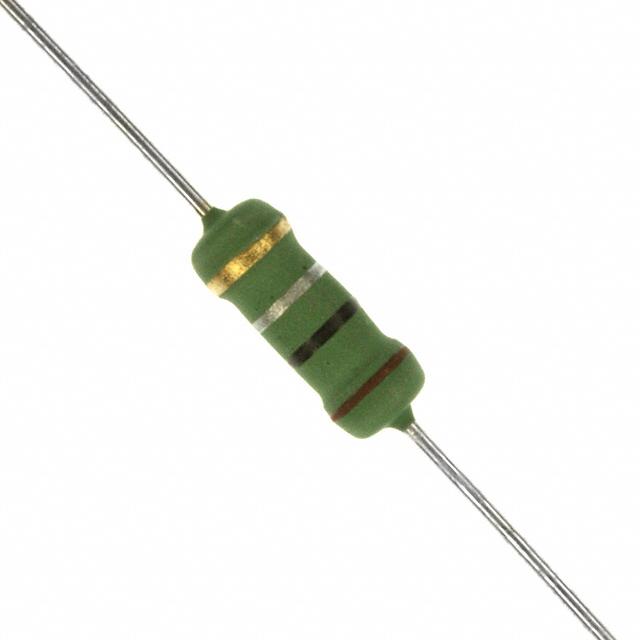

RSMF2JT68R0图片1
RSMF2JT68R0图片2
RSMF2JT68R0概述

68Ω ±5% 2W ±200ppm/℃ Φ4.50mm

68 Ohms ±5% 2W Through Hole Resistor Axial Flame Proof, Safety Metal Oxide Film


得捷:
RES 68 OHM 5% 2W AXIAL


艾睿:
Looking for a low-cost resistor to add to your printed circuit design? The RSMF2JT68R0 fixed single through-hole resistor from SEI Stackpole Electronics is for you! This part has a power rating of 2 W. This product has a resistance value of 68 Ohm. Its temperature coefficient is ±200 ppm/°C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 11 mm long. This part has an operating temperature of -55 to 235 °C. It has a tolerance of 5%. The RSMF2JT68R0 part has an axial termination style. This device utilizes metal oxide technology.


Chip1Stop:
Res Metal Oxide 68 Ohm 5% 2W ±200ppm/ÂÂ℃ Conformal Coated AXL T/R


Verical:
Res Metal Oxide 68 Ohm 5% 2W ±200ppm/°C Conformal Coated AXL T/R


RSMF2JT68R0中文资料参数规格
技术参数

容差 ±5 %

额定功率 2 W

产品系列 RSMF

电阻 68 Ω

阻值偏差 ±5 %

工作温度Max 235 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

封装 Axial

外形尺寸

长度 11 mm

直径 Φ4.50mm

脚长度 30 mm

封装 Axial

物理参数

工作温度 -55℃ ~ 235℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 2500

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

RSMF2JT68R0引脚图与封装图
RSMF2JT68R0引脚图

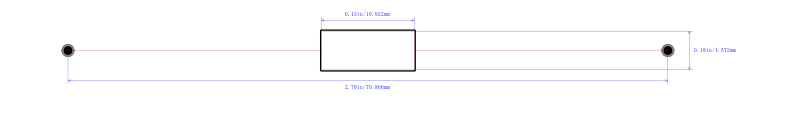

RSMF2JT68R0封装图
RSMF2JT68R0封装焊盘图
在线购买RSMF2JT68R0
型号: RSMF2JT68R0
制造商: Stackpole Electronics
描述:68Ω ±5% 2W ±200ppm/℃ Φ4.50mm
