RMCF2512JT3K90

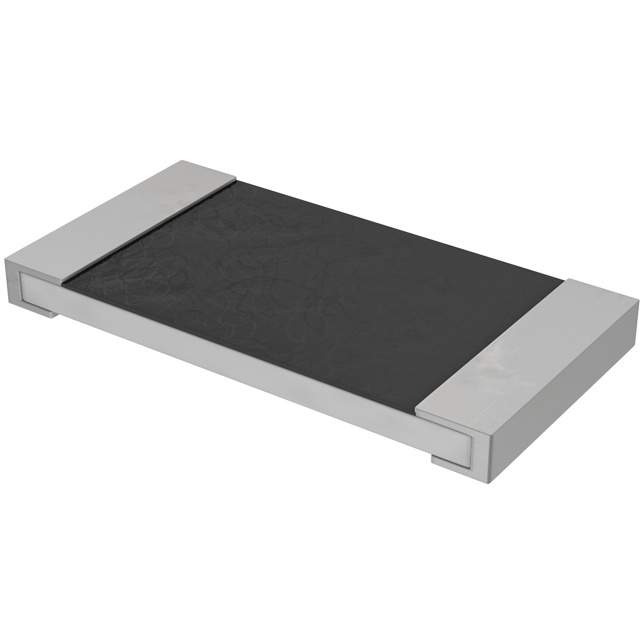

RMCF2512JT3K90图片1
RMCF2512JT3K90图片2
RMCF2512JT3K90图片3
RMCF2512JT3K90图片4
RMCF2512JT3K90概述

2512 3.9kΩ ±5% 1W ±200ppm/℃

±5% 1W 芯片 2512(6432 公制) 汽车级AEC-Q200 厚膜


得捷:
RES 3.9K OHM 5% 1W 2512


艾睿:
Use this RMCF2512JT3K90 fixed single surface-mount resistor from SEI Stackpole Electronics to obtain a visually clean layout. This product has a resistance value of 3.9K Ohm. This durable part has a power rating of 1 W. Its temperature coefficient is ±200 ppm/°C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This part has an operating temperature of -55 to 155 °C. This product is 6.3 mm long, 0.55 mm tall and 3.2 mm deep. It has a tolerance of 5%. This device is made with thick film technology.


安富利:
Res Thick Film 2512 3.9K Ohm 5% 1W ±100ppm/°C Molded SMD SMD Plastic T/R


Verical:
Res Thick Film 2512 3.9K Ohm 5% 1W ±200ppm/°C Pad SMD Automotive T/R


RMCF2512JT3K90中文资料参数规格
技术参数

容差 ±5 %

额定功率 1 W

产品系列 RMCP/RMCF

电阻 3.9 kΩ

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 6432

封装 2512

外形尺寸

长度 6.4 mm

宽度 3.2 mm

高度 0.55 mm

封装公制 6432

封装 2512

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 4000

符合标准

RoHS标准

含铅标准 Lead Free

数据手册

RMCF2512JT3K90引脚图与封装图
RMCF2512JT3K90引脚图
RMCF2512JT3K90封装图
RMCF2512JT3K90封装焊盘图
在线购买RMCF2512JT3K90
型号: RMCF2512JT3K90
制造商: Stackpole Electronics
描述:2512 3.9kΩ ±5% 1W ±200ppm/℃
替代型号RMCF2512JT3K90
型号/品牌 代替类型 替代型号对比

RMCF2512JT3K90

Stackpole Electronics

当前型号

当前型号

RC2512JK-073K9L

国巨

功能相似

RMCF2512JT3K90和RC2512JK-073K9L的区别
