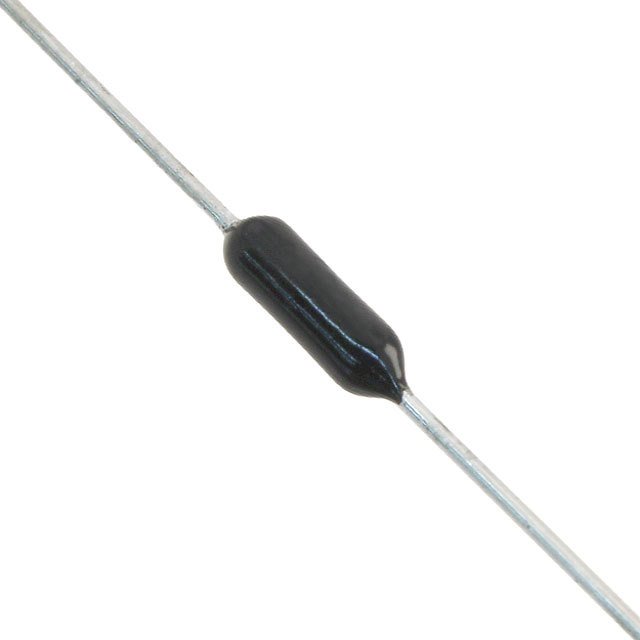

WELWYN RC55Y-2K49BI. 金属膜电阻, 2.26KΩ
If you are in the market for a cost-effective alternative to surface-mount components, the fixed single through-hole resistor from Welwyn TT electronics could be of use in your design. This dependable part has a power rating of 0.25 1/4 W. This product has a resistance value of 2.49K Ohm. Its temperature coefficient is ±15 ppm/°C. This product is 7.2 mm long. This part has an operating temperature of -55 to 155 °C. This device is made with metal film technology. The RC55Y-2K49BI part has an axial termination style.
额定电压DC 350 V
容差 ±0.1 %
额定功率 250 mW
电阻 2.49 kΩ
阻值偏差 ±0.1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 350 V
安装方式 Through Hole
引脚数 2
封装 轴向引线
脚长度 30 mm
封装 轴向引线
工作温度 -55℃ ~ 155℃
温度系数 ±15 ppm/℃
产品生命周期 Discontinued at Digi-Key
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RC55Y-2K49BI TT Electronics/Welwyn | 当前型号 | 当前型号 |
H82K49BYA Holsworthy | 类似代替 | RC55Y-2K49BI和H82K49BYA的区别 |
MCMF0W4DF2491A50 Multicomp | 功能相似 | RC55Y-2K49BI和MCMF0W4DF2491A50的区别 |
