RC55Y-100KBI

WELWYN  RC55Y-100KBI..  金属膜电阻, 100KΩ

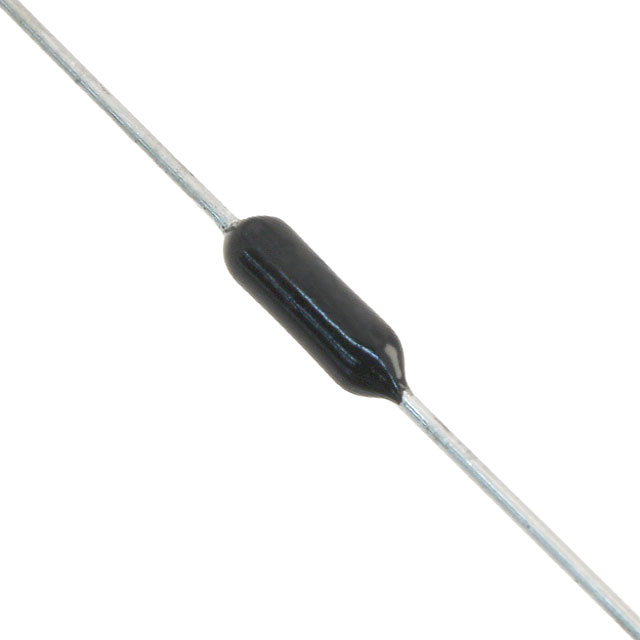

The is a precision Metal Film Resistor with solder-coated copper wire. A metal film is deposited onto a high quality ceramic former. Nickel-plated steel caps are force fitted to the former and termination wires are welded to the caps. The resistor is adjusted to value by a helical cut in the film and the body is protected with a specially formulated epoxy coating.

.

CECC released products with low

.

TCRs over a wide resistance range

.

0.05% Resistance tolerance down

.

Express delivery available

.

Low noise and negligible voltage coefficient

.

Screened parts available for critical applications

.

5ppm/°C Temperature coefficient of resistance down

.

Options for RoHS compliant and lead bearing wire finishes
