SMD电阻器/芯片电阻器
SMD器/芯片电阻器
立创商城:
1.2MΩ ±5% 125mW
得捷:
RES SMD 1.2M OHM 5% 1/8W 0805
艾睿:

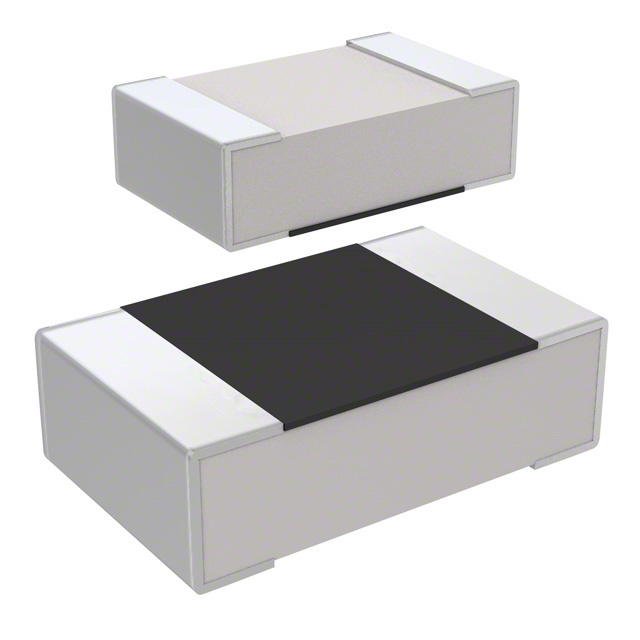

This is a RC2012J125CS fixed single surface-mount resistor from Samsung Electro-Mechanics. This product has a resistance value of 1.2M Ohm. This dependable part has a power rating of 0.125 1/8 W. Its temperature coefficient is ±100 ppm/°C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 5%. This device utilizes thick film technology. This product is 2 mm long, 0.55 mm tall and 1.25 mm deep.
额定电压DC 150 V
容差 ±5 %
额定功率 0.125 W
产品系列 RC
电阻 1.2 MΩ
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.55 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准
含铅标准 Lead Free
