RC1608F8061CS

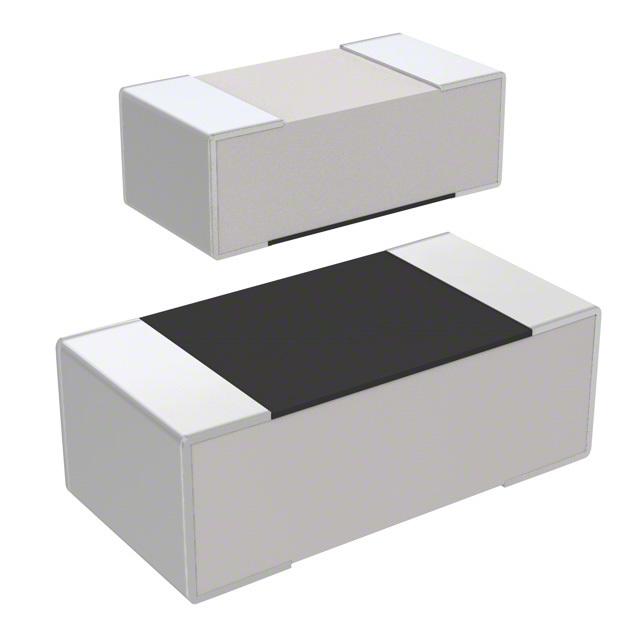

RC1608F8061CS图片1
RC1608F8061CS图片2
RC1608F8061CS图片3
RC1608F8061CS图片4
RC1608F8061CS图片5
RC1608F8061CS概述

0603 8.06kΩ ±1%

8.06 kOhms ±1% 0.1W,1/10W 芯片 0603(1608 公制) 防潮 厚膜


得捷:
RES SMD 8.06K OHM 1% 1/10W 0603


艾睿:
The RC1608F8061CS fixed single surface-mount resistor from Samsung Electro-Mechanics makes it easy to add resistors to your circuit board. This durable part has a power rating of 0.1 1/10 W. This product has a resistance value of 8.06K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%. This device utilizes thick film technology.


安富利:
Res Thick Film 0603 8.06K Ohm 1% 1/10W ±100ppm/°C Molded SMD SMD T/R


Verical:
Res Thick Film 0603 8.06K Ohm 1% 0.1W1/10W ±100ppm/C Pad SMD T/R


RC1608F8061CS中文资料参数规格
技术参数

额定电压DC 50.0 V

容差 ±1 %

额定功率 0.1 W

产品系列 RC

电阻 8.06 kΩ

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 1608

封装 0603

外形尺寸

长度 1.6 mm

宽度 0.8 mm

高度 0.45 mm

封装公制 1608

封装 0603

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Discontinued at Digi-Key

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准

含铅标准 Lead Free

数据手册

RC1608F8061CS引脚图与封装图
RC1608F8061CS引脚图

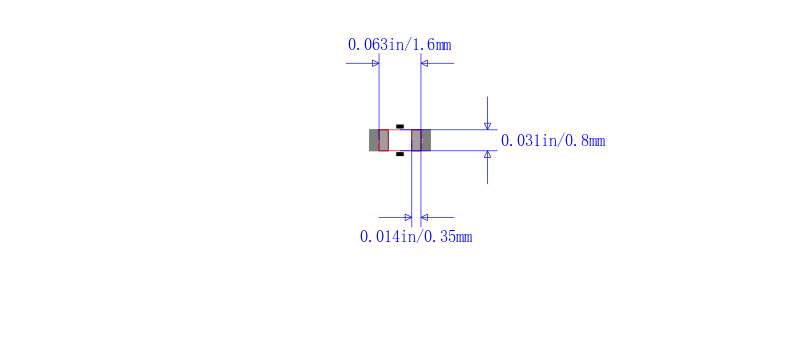

RC1608F8061CS封装图
RC1608F8061CS封装焊盘图
在线购买RC1608F8061CS
型号: RC1608F8061CS
制造商: Samsung 三星
描述:0603 8.06kΩ ±1%
替代型号RC1608F8061CS
型号/品牌 代替类型 替代型号对比

RC1608F8061CS

Samsung 三星

当前型号

当前型号

RC0603FR-078K06

国巨

功能相似

RC1608F8061CS和RC0603FR-078K06的区别

RC0603FR-108K06

国巨

功能相似

RC1608F8061CS和RC0603FR-108K06的区别
