RJ26FX502

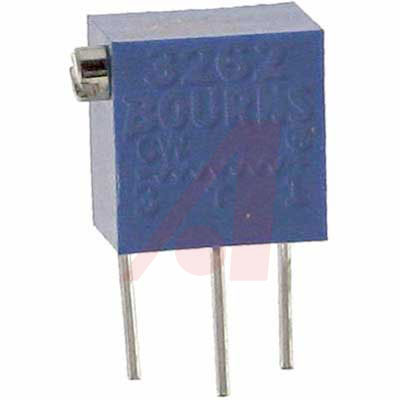

BOURNS  RJ26FX502  微调电位器, 5KΩ 12转 通孔安装

Listed on DESC QPL for RJ26 per MIL-R-22097 and RJR26 per High-Rel MIL-R-39035. Low temperature coefficient ±100 ppm/°C. Outstanding humidity resistance and low contact resistance. Stable, infinite resolution cermet element.

**Features:**

* Power Rating: 0.25 W at +85°C

* Temperature Range: –65°C to +150°C

* Resistance Tolerance: ±10%

* Rotational Life: 200 Cycles

艾睿:
Res Cermet Trimmer 5K Ohm 10% 0.25W1/4W 12ElecTurn 1.78mm 7.37 X 4.32 X 6.35mm Pin Thru-Hole Tube

Allied Electronics:
Trimmer; Cermet; Rest 5 Kilohms; PCB; Pwr-Rtg 0.25W; Dim 0.25InLx0.17InWx0.25InH

安富利:
Res Cermet Trimmer 5K Ohm 10% 1/4W 12ElecTurn 1.78mm 7.37 X 4.32 X 6.35mm Pin Thru-Hole Tube

Chip1Stop:
Res Cermet Trimmer 5K Ohm 10% 0.25W1/4W 12ElecTurn 1.78mm 7.37 X 4.32 X 6.35mm Pin Thru-Hole Tube

Verical:
Res Cermet Trimmer 5K Ohm 10% 0.25W1/4W 12ElecTurn 1.78mm 7.37 X 4.32 X 6.35mm Pin Thru-Hole Tube

Newark:
# BOURNS  RJ26FX502  Trimmer Potentiometer, Multiturn, 5 kohm, 250 mW, ± 10%, RJ26F Series, 12 Turns, Through Hole

MASTER:
Res Cermet Trimmer 5K Ohm 10% 0.25W1/4W 12ElecTurn 1.78mm 7.37 X 4.32 X 6.35mm Pin Thru-Hole Tube

Online Components:
Res Cermet Trimmer 5K Ohm 10% 0.25W1/4W 12ElecTurn 1.78mm 7.37 X 4.32 X 6.35mm Pin Thru-Hole Tube

Electro Sonic:
Res Cermet Trimmer 5K Ohm 10% 0.25W1/4W 12ElecTurn 1.78mm 7.37 X 4.32 X 6.35mm Pin Thru-Hole Tube
