RA30NASD502A

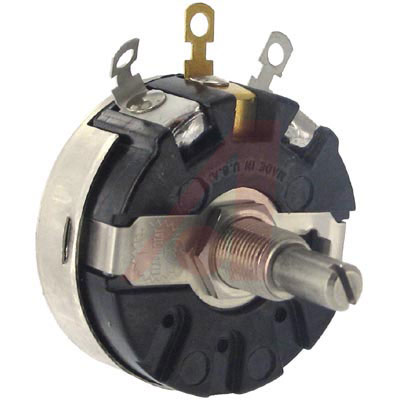

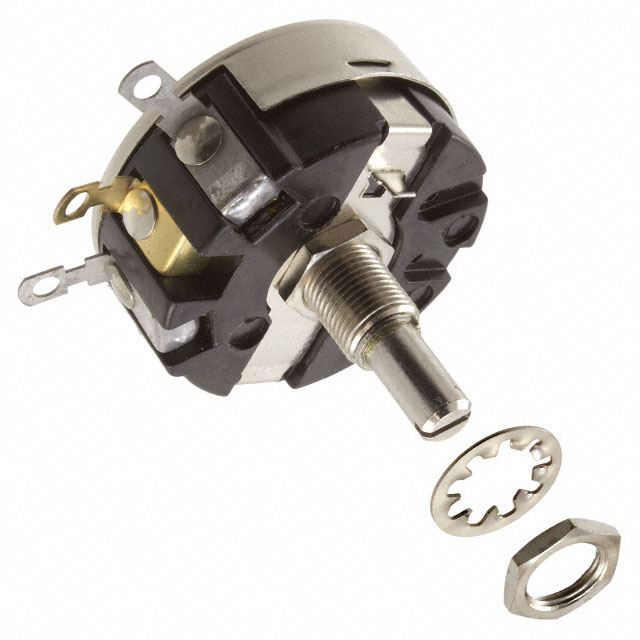

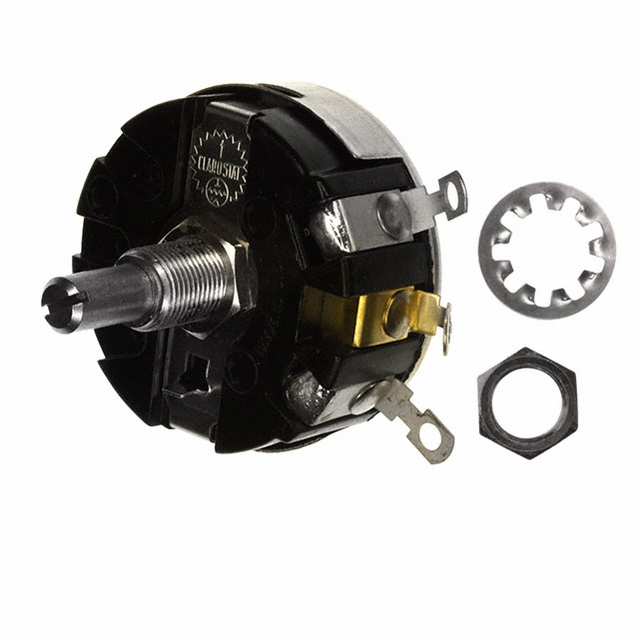

HONEYWELL  RA30NASD502A  绕线电位器, 4W 5千欧

RA30 Series Industrial Potentiometer

The RA30 is the Military 4-watt version of the 58C Series. The RA20 Series is a 2 watt potentiometer and meets strict military standard MIL-R-19. The RA30NASD Series has 1/4" dia., 7/8" long FMS slotted shaft with 3/8" long bushing with 3/8-32 NEF-2A threads. The RA30LASB Series has 1/4" dia., 5/8" long FMS screwdriver slotted shaft with 1/2" long split locking bushing with 3/8-32 NEF-2A threads. Hardware not supplied. The RA20NASD Series has 1/4" dia., 7/8" long FMS slotted shaft with 3/8" long bushing with 3/8-32 NEF-2A threads. The RA20LASB Series has 1/4" dia., 5/8" long FMS screwdriver slotted shaft with 1/2" long split locking bushing with 3/8-32 NEF-2A threads.

.

* Specifications. Operating Temperature:** -55°C to 105°C. ** Tolerance:** 10%. ** Standard Effective Rotation:** 280°. ** Electrical Rotation:** 300°. Hardware not supplied.

The RA30 Series is a military qualified potentiometer made in accordance to MIL-R-19 specifications. It offers a 3 W power rating and a wire wound element.
