低噪声，极低漂移，高精度电压基准 LOW NOISE, VERY LOW DRIFT, PRECISION VOLTAGE REFERENCE
The REF5025-HT is a low-noise, very low-drift, very high precision voltage references. This reference is capable of both sinking and sourcing, and is very robust with regard to line and load changes.
Excellent temperature drift and high accuracy are achieved using proprietary design techniques. These features, combined with very low noise, make the REF5025-HT suitable for use in high-precision data acquisition systems.

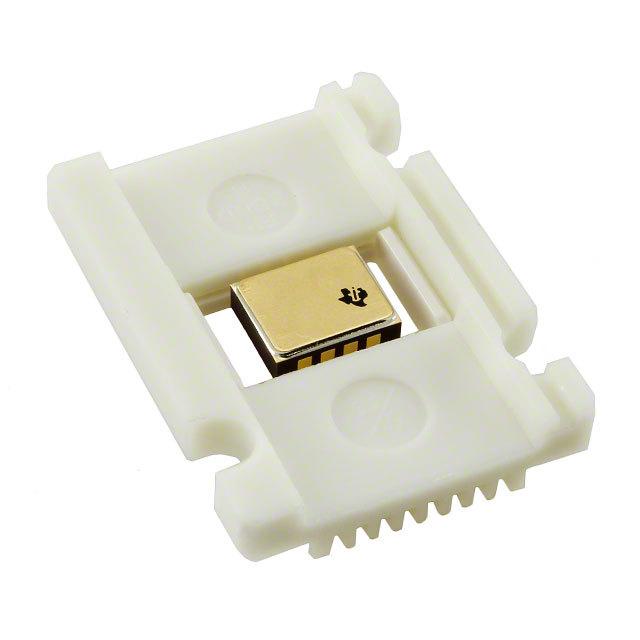

The device is offered in HKJ and HKQ packages, as well as Known-Good-Die KGD form, and is specified from –55°C to +210°C.
容差 ±0.9 %
输入电压DC 3.25V ~ 18.0V
输出电压 2.5 V
输出电流 7 mA
供电电流 1.5 mA
通道数 1
静态电流 800 µA
输入电压Max 18 V
输出电压Max 2.5 V
输出电压Min 2.5 V
输出电流Max 10 mA
工作温度Max 210 ℃
工作温度Min -55 ℃
输入电压 3.25V ~ 18V
安装方式 Surface Mount
引脚数 8
封装 CFP-8
封装 CFP-8
工作温度 -55℃ ~ 210℃ TA
温度系数 ±40 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/06/15
