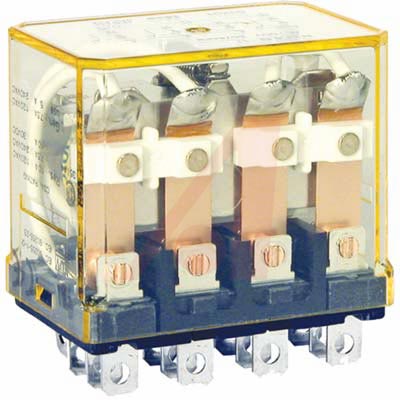

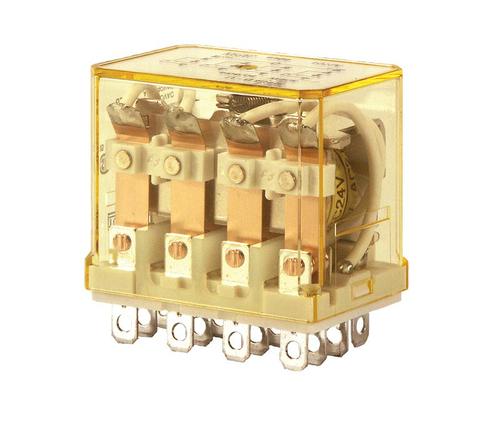

RH4B-UAC24V

IDEC  RH4B-UAC24V  通用功率继电器, RH系列

RH Series Power Relays

10 amp switching capacity and blade terminals. UL recognized, CSA certified, CE marked.

.

* Specifications. Contact Resistance:** 50 MΩ max. initial value. ** Operate Time and Release Time:** SPDT, DPDT — 20 msec. max.; 3PDT, 4DPT — 25 msec. max. ** Insulation Resistance:** 100 MΩ min. measured at 500 VDC megger. ** Power Consumption:** SPDT AC — 1.1 VA 50 Hz, 1 VA 60 Hz; SPDT DC — 0.8 W. DPDT AC — 1.4 VA 50 Hz, 1.2 VA 60 Hz; DPDT DC — 0.9 W. 3PDT AC — 2 VA 50 Hz, 1.7 VA 60 Hz; 3PDT DC — 1.5 W. 4PDT AC — 2.5 VA 2 VA 60 Hz; 4PDT DC — 1.5 W. ** Operating Temperature:** -30°C to +70°C. ** Temperature Rise:** Coil — 85°C max.; Contact — 65°C max.

The RH series are miniature power relays with a large capacity. The RH relays feature 10 A contact capacity and the compact size saves space.
