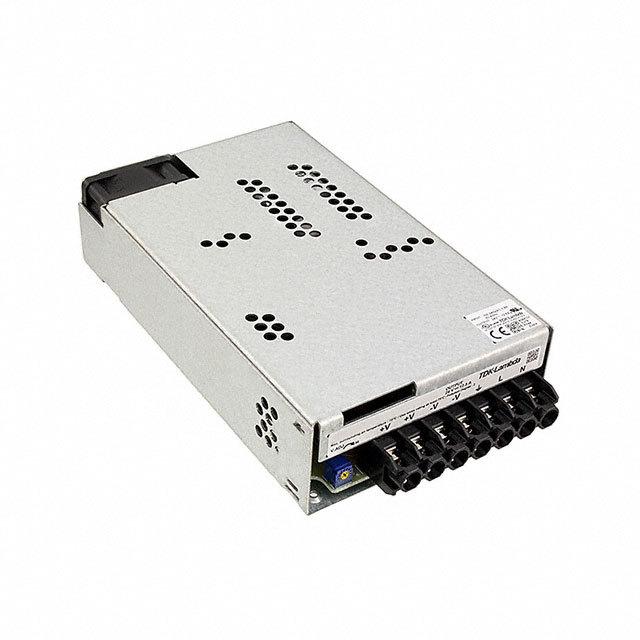

TDK LAMBDA RWS300B12 交流-直流转换器, 1路输出, 12V, 25A, 300W

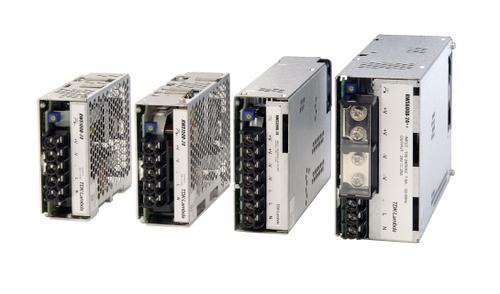

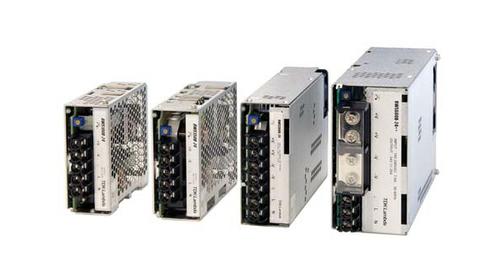

RWS-B Series 100W to 600W Single Output General Purpose Power Supplies
* Low Cost
* Wide Range AC Input 85-265 VAC 300 VAC for 5s
* UL508 Certification on Select Models
* Enclosed Construction
* Compact Size
* 5-Year Warranty
得捷:
AC/DC CONVERTER 12V 300W
贸泽:
Switching Power Supplies
e络盟:
交流-直流转换器, 1路输出, 12V, 25A, 300W
艾睿:
Ensure optimal performance of your electronic device with the use of this RWS300B12 AC to DC power supply from TDK-Lambda. It has a voltage of 12 V and maximum output power of 300 W. This part&s;s single output can handle a current up to 25 A. This part has a temperature range of -10 °C to 70 °C.
Allied Electronics:
Power Supply; AC-DC; 12V; 25A; 85-265V In; Enclosed; Pnl Mnt; Embedded; 300W; RWS Series
Verical:
AC/DC Power Supply Single-OUT 12V 25A 300W
额定功率 300 W
输出接口数 1
输出电压 12 V
输出电流 25 A
输出功率 300 W
隔离电压 3 kV
输入电压DC Max 370 V
输入电压DC Min 120 V
输入电压AC Max 265 v
输入电压AC Min 85 v
输出电流Max 25 A
输入电流Min 3.8 A
输出功率Max 300 W
工作温度Max 70 ℃
工作温度Min -20 ℃
输入电压 85V ~ 265V
高度 41 mm
工作温度 -20℃ ~ 70℃
产品生命周期 Active
制造应用 ITE(商业)
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RWS300B12 TDK 东电化 | 当前型号 | 当前型号 |
SWS300A12 东电化 | 类似代替 | RWS300B12和SWS300A12的区别 |
SWS300-12 东电化 | 类似代替 | RWS300B12和SWS300-12的区别 |
RWS-300B-12 东电化 | 类似代替 | RWS300B12和RWS-300B-12的区别 |
