0805 6.65kΩ ±1%
6.65 ±1% 0.125W,1/8W 芯片 0805(2012 公制) 防潮 厚膜
得捷:
RES SMD 6.65K OHM 1% 1/8W 0805
立创商城:
6.65kΩ ±1% 125mW
艾睿:

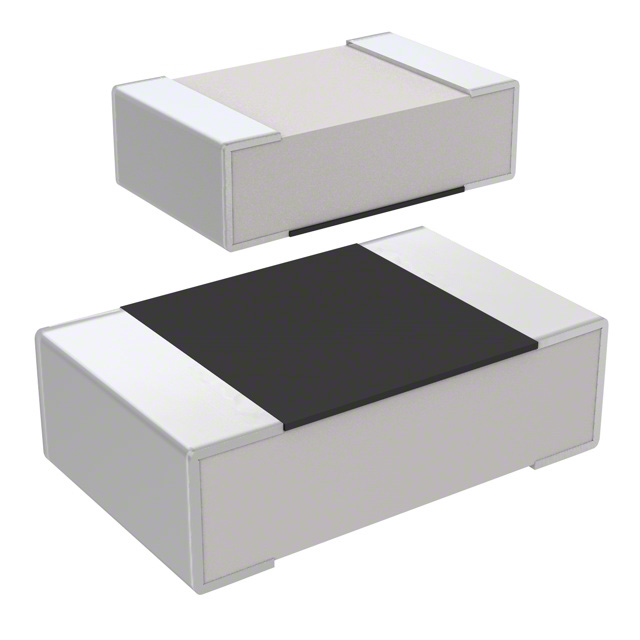

This is a RC2012F6651CS fixed single surface-mount resistor from Samsung Electro-Mechanics. This durable part has a power rating of 0.125 1/8 W. This product has a resistance value of 6.65K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 1%. This part has an operating temperature of -55 to 155 °C. This product is 2 mm long, 0.55 mm tall and 1.25 mm deep. This device is made with thick film technology.
额定电压DC 150 V
容差 ±1 %
额定功率 0.125 W
产品系列 RC
电阻 6.65 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.55 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC2012F6651CS Samsung 三星 | 当前型号 | 当前型号 |
RC0805FR-076K65L 国巨 | 类似代替 | RC2012F6651CS和RC0805FR-076K65L的区别 |
9C08052A6651FKHFT 国巨 | 类似代替 | RC2012F6651CS和9C08052A6651FKHFT的区别 |
AR0805FR-076K65L 国巨 | 功能相似 | RC2012F6651CS和AR0805FR-076K65L的区别 |
