RC3216J475CS

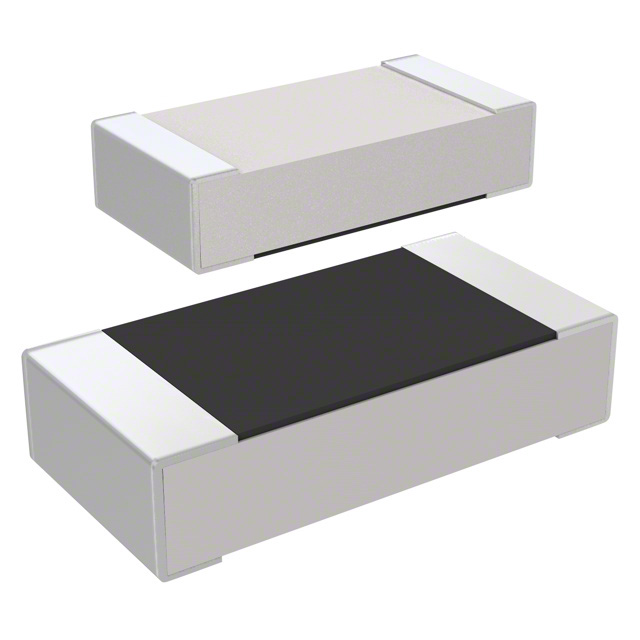

RC3216J475CS图片1
RC3216J475CS图片2
RC3216J475CS图片3
RC3216J475CS概述

1206 4.7MΩ ±5%

4.7 MOhms ±5% 0.25W,1/4W 芯片 1206(3216 公制) 防潮 厚膜


得捷:
RES SMD 4.7M OHM 5% 1/4W 1206


艾睿:
Use this RC3216J475CS fixed single surface-mount resistor from Samsung Electro-Mechanics to obtain a visually clean layout. This product has a resistance value of 4.7M Ohm. This part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 5%. This product is 3.2 mm long, 0.55 mm tall and 1.6 mm deep. This part has an operating temperature of -55 to 155 °C. This device utilizes thick film technology.


富昌:
RC 系列 4.7 MΩ ±5 % 0.25 W ±100 ppm/°C1206 厚膜 贴片电阻


RC3216J475CS中文资料参数规格
技术参数

额定电压DC 200 V

容差 ±5 %

额定功率 0.25 W

产品系列 RC

电阻 4.7 MΩ

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 3216

封装 1206

外形尺寸

长度 3.2 mm

宽度 1.6 mm

高度 0.55 mm

封装公制 3216

封装 1206

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准

含铅标准 Lead Free

数据手册

RC3216J475CS引脚图与封装图
RC3216J475CS引脚图
RC3216J475CS封装图
RC3216J475CS封装焊盘图
在线购买RC3216J475CS
型号: RC3216J475CS
制造商: Samsung 三星
描述:1206 4.7MΩ ±5%
替代型号RC3216J475CS
型号/品牌 代替类型 替代型号对比

RC3216J475CS

Samsung 三星

当前型号

当前型号

AR1206JR-074M7L

国巨

功能相似

RC3216J475CS和AR1206JR-074M7L的区别
