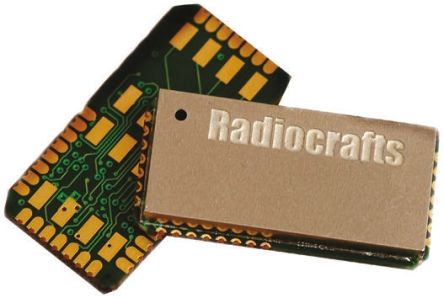

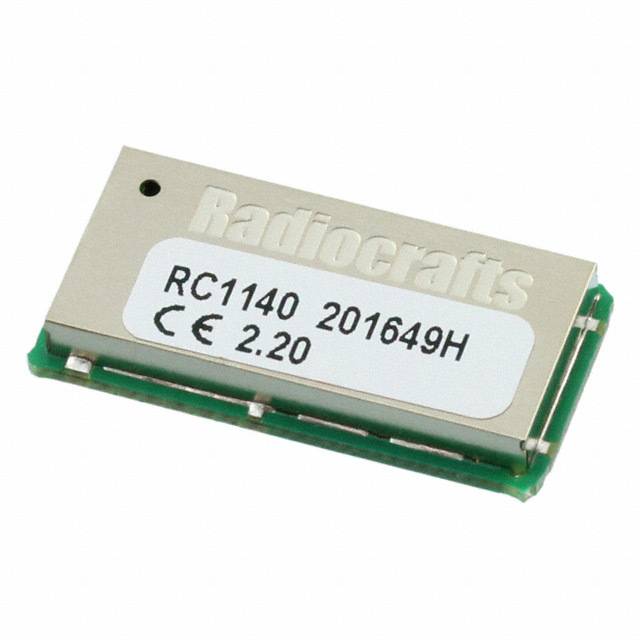

RC1140-RC232

RC11xx-RC232 Sub-1GHz RF Transceiver ModulesA pair of **RC11xx-RC232** modules will replace a low-speed asynchronous serial data cable with a bi-directional wireless link. Two modules are available for the 433MHz and 868MHz ISM frequency bands.RF Operating Frequency: 433/868MHz ISM Band with 17/16 channels RF Output Power: +9dBm Modulation: FSK Receiver Sensitivity: -110dBm @ 1200bps, 0.1% BER OTA Data Rate: up to 100kbps Embedded RC232™ packet handler with CRC error checking 128 byte data buffer Digital RSSI Host communication: Serial UART with CTS/RTS flow control Low-power Sleep mode available Power supply: +2.0 to +3.6Vdc Operating temperature range: -40 to +85°C Dimensions: 12.7 x 25.4 x 3.3mm Applications: OEM equipment, Alarm & security systems, Point-of-sales terminals, Bar code scanners, Telemetry stations, Fleet management , Communication for the Internet of Things IoT **RS Product Codes** 672-2787 RC1140-RC232 433.05 to 433.79MHz 672-2784 RC1180-RC232 868.0 to 870.0MHz ### 认可EN 300 220, EN 301 489, EN 60950### 无线电模块 - Radiocrafts

通用 ISM < 1GHz RC232 RF 收发器模块 433MHz ~ 434MHz 不含天线，城堡形 表面贴装型

得捷:
RF TXRX MOD ISM < 1GHZ CAST SMD

欧时:
RC11xx-RC232 Sub-1GHz RF Transceiver ModulesA pair of **RC11xx-RC232** modules will replace a low-speed asynchronous serial data cable with a bi-directional wireless link. Two modules are available for the 433MHz and 868MHz ISM frequency bands.RF Operating Frequency: 433/868MHz ISM Band with 17/16 channels RF Output Power: +9dBm Modulation: FSK Receiver Sensitivity: -110dBm @ 1200bps, 0.1% BER OTA Data Rate: up to 100kbps Embedded RC232™ packet handler with CRC error checking 128 byte data buffer Digital RSSI Host communication: Serial UART with CTS/RTS flow control Low-power Sleep mode available Power supply: +2.0 to +3.6Vdc Operating temperature range: -40 to +85°C Dimensions: 12.7 x 25.4 x 3.3mm Applications: OEM equipment, Alarm & security systems, Point-of-sales terminals, Bar code scanners, Telemetry stations, Fleet management , Communication for the Internet of Things IoT **RS Product Codes** 672-2787 RC1140-RC232 433.05 to 433.79MHz 672-2784 RC1180-RC232 868.0 to 870.0MHz### 认可EN 300 220, EN 301 489, EN 60950### 无线模块 - Radiocrafts

e络盟:
The RC11XX-RC232 is a 433.05MHz to 433.79MHz low cost multichannel RF transceiver module. This module is a compact surface mounted high performance module for FSK operation with embedded protocol. The module is completely shielded and precertified for operation under the European radio regulations for license-free use. The module contains a communication controller with embedded RC232 protocol software, a high performance RF transceiver and an internal voltage regulator. This module offers a buffered packet radio in the RC232 embedded protocol. Using the buffered packet radio mode, all data to be sent is stored in the module before they are transmitted by the RF circuitry. The module can be set in SLEEP mode in order to reduce the power consumption.
