0603 1.6Ω ±5%
贴片 0603 1.6Ω ±5% 1/10W
得捷:
RES SMD 1.6 OHM 5% 1/10W 0603
立创商城:
1.6Ω ±5% 100mW
艾睿:

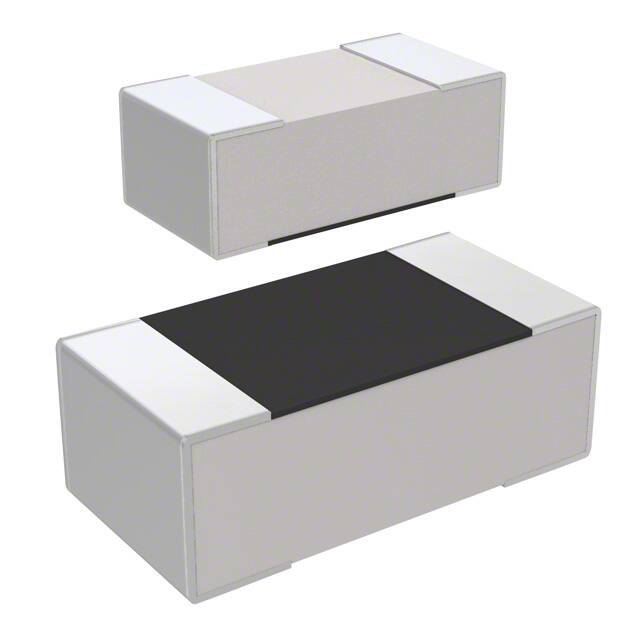

The RC1608J1R6CS fixed single surface-mount resistor from Samsung Electro-Mechanics makes it easy to add resistors to your circuit board. This part has a power rating of 0.1 1/10 W. This product has a resistance value of 1.6 Ohm. Its temperature coefficient is ±300 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 5%. This device is made with thick film technology.
Verical:
Res Thick Film 0603 1.6 Ohm 5% 0.1W1/10W ±300ppm/C Pad SMD T/R
额定电压DC 50.0 V
容差 ±5 %
额定功率 0.1 W
产品系列 RC
电阻 1.6 Ω
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.45 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 155℃
温度系数 ±300 ppm/℃
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准
含铅标准 Lead Free
