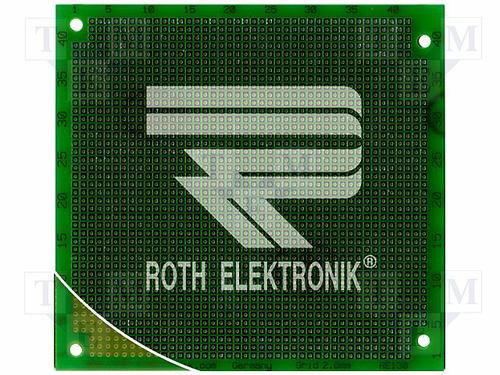

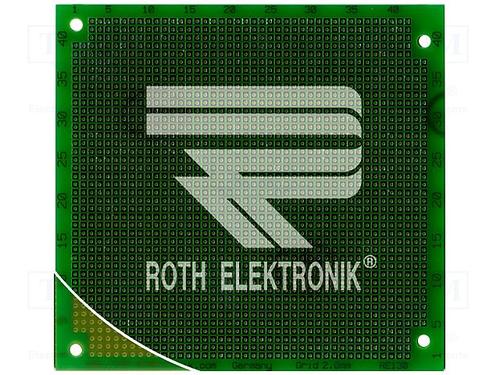

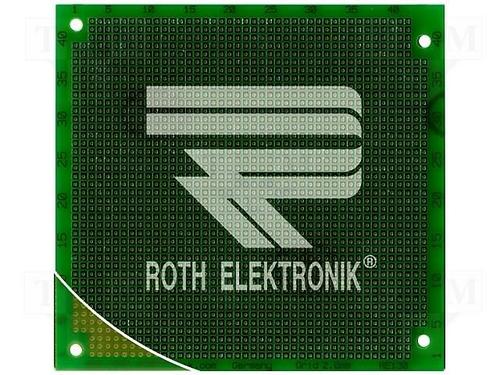

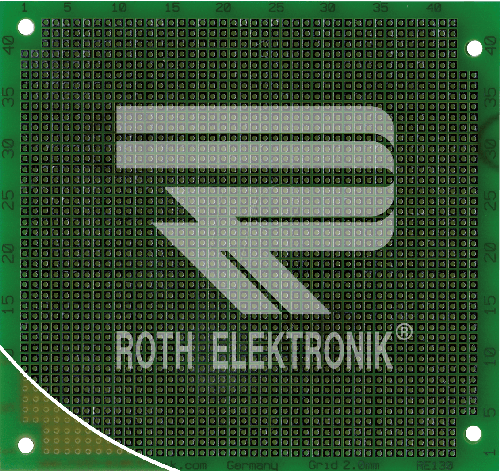

RE130-LF

ROTH ELEKTRONIK  RE130-LF  电路板, Metr.Labcard, 环氧玻璃复合, 1.5mm, 90.17mm x 95.89mm

* Hole spacing 2.00 x 2.00mm

.

44 x 42 lines of holes

.

Single-hole conductors 1.60 mm2

.

hole dia 0.8mm

.

Soldering stop mask at the solder side

.

Size 90.17 x 95.89mm

.

Working temperature: max. 150°C

.

Soldering bath proof: 260°C max. 50 sec

.

EPOXY fibre-glass FR 4 1.5 mm single-sided 35 µm CU

.

Hot air levelling HAL-leadfree
