RX-1M1008FE

OHMITE  RX-1M1008FE  通孔电阻器, RX系列, 10 Gohm, 500 mW, ± 1%, 1 kV, 轴向引线

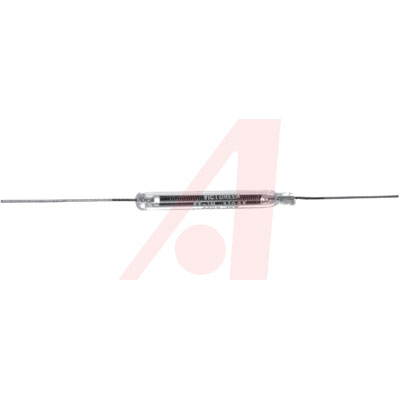

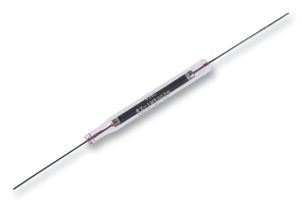

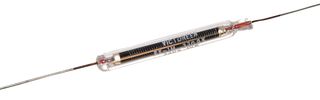

The is a glass sealed Hermetic Resistor with a metal oxide resistive element. This RX-1M Hi-Meg series ultra-high resistance high stability hermetically sealed fixed resistor designed for use in electrometer circuits where a high order of performance is required. This resistor achieves a high degree of accuracy and stability and operates at this high performance level for an extended period of time. By being vacuum sealed in a glass envelope, this Hi-Meg is suitable for ultra-high vacuum applications.

.

Improved temperature stability

.

Improved voltage stability

.

No outgassing

This glass encapsulated resistor especially those of higher resistance value, require extraordinary cleanliness. This resistor should be handled by the terminals, unless gloves are worn.
