RV4NAYSD502A

ETI SYSTEMS  RV4NAYSD502A  旋转电位器, 热模压碳, RV4系列, 5 kohm, 线性, 1 转, 2 W, 面板

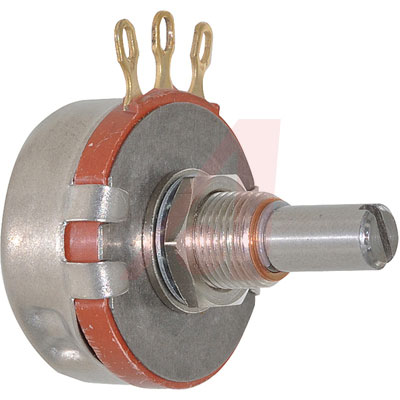

The is a 5kR 2W 1-turn 1-gang panel-mounting Rotary Potentiometer with screwdriver slot adjustment and linear track taper. The potentiometer has hot moulded carbon element, gold-plated terminals, stainless steel shaft and housing. It has ±10% resistance tolerance, 314° mechanical rotation and 900Vrms dielectric strength.

.

25000-cycle Rotational life

.

-65 to 125°C Operating temperature range
