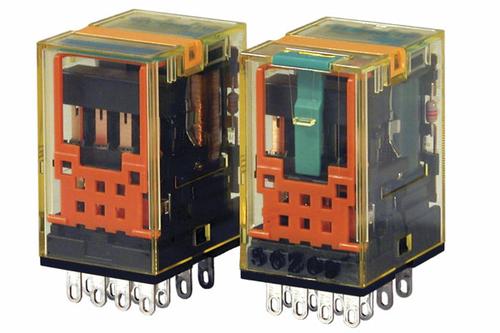

IDEC RU4S-D12 插入式继电器
**Full featured universal miniature relays**
**Designed with environment taken into consideration**
Two terminal styles: plug-in and PCB mount
Non-polarized LED indicator available on plug-in relays
No internal wires, lead-free construction
Cadmium-free contacts
Mechanical fl ag indicator available on plug-in relays
Manual latching lever with color coding for AC or DC coil
Snap-on yellow marking plate; optional marking plates are available in four other colors
额定电压DC 30 V
额定电压AC 250 V
额定电流 6 A
触点类型 4PDT
触点额定电流 6 A
线圈电压 12 VDC
线圈电流 6 A
线圈电阻 160 Ω
载流 6.00 A
额定电流Max 6 A
线圈电压DC 12 V
额定功率Max 180W, 1.5KVA
工作温度Max 70 ℃
工作温度Min -55 ℃
额定电压 250 VAC
安装方式 Plug In
引脚数 14
长度 27.5 mm
宽度 41.6 mm
高度 21 mm
触点材质 Silver
工作温度 -55℃ ~ 60℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536410020
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RU4S-D12 IDEC | 当前型号 | 当前型号 |
HC4-H-DC12V 松下 | 功能相似 | RU4S-D12和HC4-H-DC12V的区别 |
RY4S-UDC12V IDEC | 功能相似 | RU4S-D12和RY4S-UDC12V的区别 |
