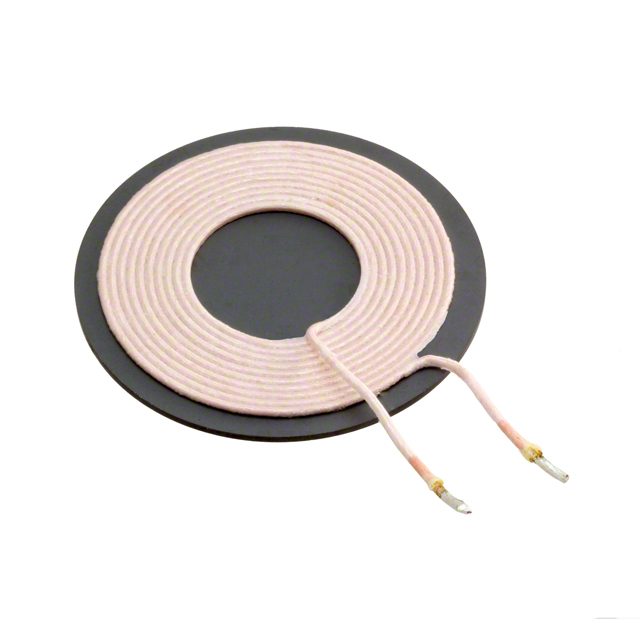

LAIRD TECHNOLOGIES RWC5050AK060-500 无线充电线圈, 6.5UH, 10%
* Designed to meet WPC Qi Standard, power transmitter design A11 compliant * Operating temperature -40℃ to +125℃ * Assembled with ferrite plate which is built with WPC listed ferrite material, high Q for maximum power transmission
得捷:
TX 1 COIL 1 LAYER 6.5UH
e络盟:
充电线圈, 无线通信, RWC系列, 6.5 µH, ± 10%
艾睿:
Single Mode Wireless Power Transmitter Automotive 2-Pin
安富利:
Ind Wireless Charging Module 6.5uH 10% 100KHz 70Q-Factor Ferrite Radial
Newark:
# LAIRD TECHNOLOGIES RWC5050AK060-500 WIRELESS CHARGING COIL, 6.5UH, 10%
ICbanQ:
WIRELESS CHARGING COIL, 6.5UH, 10%
容差 ±10 %
电感 6.5 µH
电感公差 ±10 %
测试频率 100 kHz
电阻DC） 50 mΩ
电阻DC Max 50 mΩ
引脚数 2
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Each
制造应用 工业, Commercial, 车用, 无线, 电源管理, 商业, Wireless, Automotive, Power Management, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
