RES350E

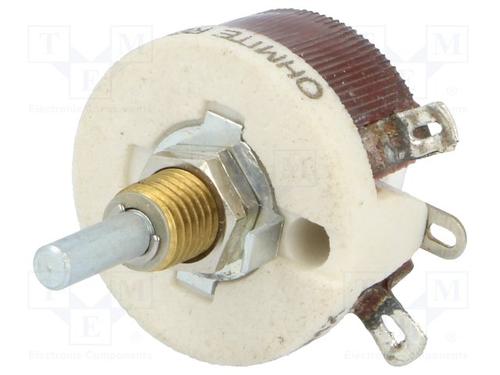

RES350E图片1

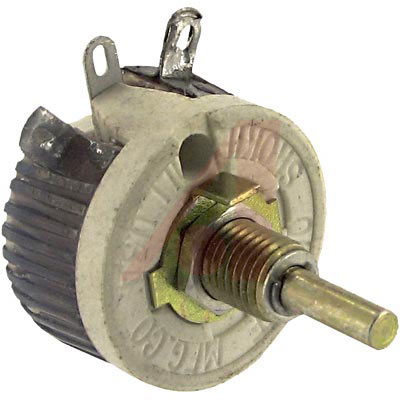

RES350E图片2
RES350E图片3
RES350E图片4
RES350E图片5
RES350E图片6
RES350E概述

Res Wirewound Rheostat 350Ω 10% 12.5W 1ElecTurn 3.18mm 33.34 X 22.23 X 26.2mm Solder Lug Panel Mount

These rheostats are designed and manufactured to operate smoothly and reliably over long periods of use. Used for motor speed controls, light dimmers and for equipment requiring convenient variable resistance settings. Windings are linear taper on stock models. Tapered windings available as custom order. Ceramic body, high-grade resistance alloy windings, vitreous enamel coating some models silicone-ceramic, metal spring contact arm, metal graphite composition and solder coated terminals.
.
*Tolerance:** ±10%. Wattage based on 25°C.
RES350E中文资料参数规格
技术参数

额定电流 0.19 A

容差 ±10 %

额定功率 12.5 W

电阻 350 Ω

阻值偏差 ±10 %

额定电压 305 V

封装参数

安装方式 Panel, Solder Lug

外形尺寸

高度 26.2 mm

直径 22.2 mm

物理参数

重量 17.0 g

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8533310000

数据手册

在线购买RES350E
型号: RES350E
制造商: Ohmite
描述:Res Wirewound Rheostat 350Ω 10% 12.5W 1ElecTurn 3.18mm 33.34 X 22.23 X 26.2mm Solder Lug Panel Mount
替代型号RES350E
型号/品牌 代替类型 替代型号对比

RES350E

Ohmite

当前型号

当前型号

RES350

Ohmite

完全替代

RES350E和RES350的区别
