RES750E概述

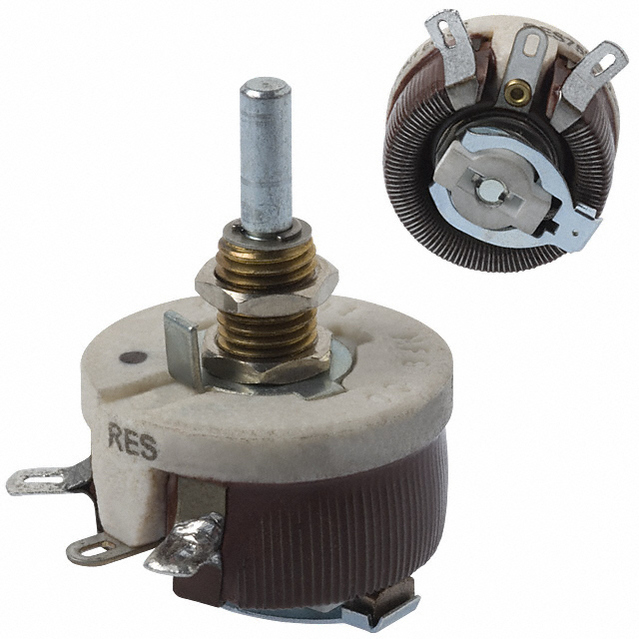

Res Wirewound Rheostat 750Ω 10% 12.5W 1Elec/1MechTurn 3.18mm 33.34 X 22.23 X 26.2mm Solder Lug Panel Mount

These rheostats are designed and manufactured to operate smoothly and reliably over long periods of use. Used for motor speed controls, light dimmers and for equipment requiring convenient variable resistance settings. Windings are linear taper on stock models. Tapered windings available as custom order. Ceramic body, high-grade resistance alloy windings, vitreous enamel coating some models silicone-ceramic, metal spring contact arm, metal graphite composition and solder coated terminals.
.
*Tolerance:** ±10%. Wattage based on 25°C.
RES750E中文资料参数规格
技术参数

容差 ±10 %

额定功率 12.5 W

电阻 750 Ω

阻值偏差 ±10 %

额定电压 305 V

封装参数

安装方式 Panel, Solder Lug

外形尺寸

长度 33.34 mm

宽度 22.23 mm

高度 26.2 mm

直径 22.2 mm

物理参数

重量 17.0 g

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8533310000

数据手册

在线购买RES750E
型号: RES750E
制造商: Ohmite
描述:Res Wirewound Rheostat 750Ω 10% 12.5W 1Elec/1MechTurn 3.18mm 33.34 X 22.23 X 26.2mm Solder Lug Panel Mount
替代型号RES750E
型号/品牌 代替类型 替代型号对比

RES750E

Ohmite

当前型号

当前型号

RES750

Ohmite

完全替代

RES750E和RES750的区别
