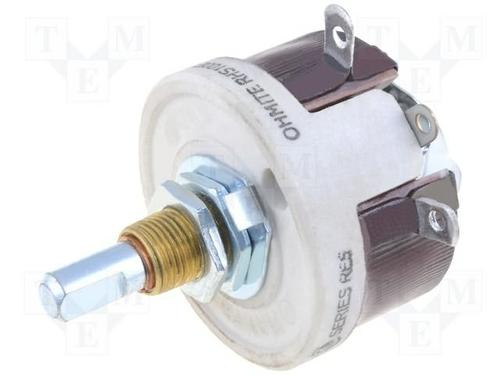

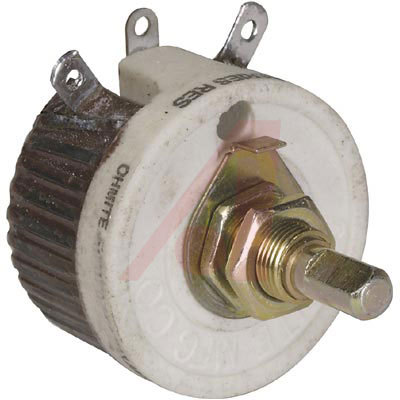

RHS10KE

OHMITE  RHS10KE  绕线变阻器, 10KΩ, 25W

是一款10kR 25W面板安装绕线变阻器, 螺丝刀槽调节, 线性轨道锥度。这款变阻器配有标准轴, 开放芯, 合成树脂含非汞杀菌剂密封。变阻器采用单体式结构, 金属盖提供保护并屏蔽内部元件。变阻器是一款机电设备, 会受到机械磨损影响, 因此使用寿命有限。

.

70°C时100％, 线性降至120°C时0％

.

工作温度范围: ‐-55至120°C

艾睿:
Res Wirewound Rheostat 10K Ohm 10% 25W 1Elec/1MechTurn 6.35mm 57.16 X 39.62 X 43.69mm Solder Lug Panel Mount

Allied Electronics:
Rheostat; WW; Rest 10 Kilohms; Pwr-Rtg 25 W; Cur-Rtg 0.05 A; Lug; Shaft 0.25 in; Open

TME:
Potentiometer: shaft; single turn; 10kΩ; 25W; 6.35mm; wirewound

Verical:
Res Wirewound Rheostat 10K Ohm 10% 25W 1Elec/1MechTurn 6.35mm 57.16 X 39.62 X 43.69mm Solder Lug Panel Mount

Newark:
# OHMITE  RHS10KE  Rheostat, Wirewound, 10 kohm, 25 W, RHS Series, Panel, Screwdriver Slot

MASTER:
Res Wirewound Rheostat 10K Ohm 10% 25W 1Elec/1MechTurn 6.35mm 57.16 X 39.62 X 43.69mm Solder Lug Panel Mount

Online Components:
Res Wirewound Rheostat 10K Ohm 10% 25W 1Elec/1MechTurn 6.35mm 57.16 X 39.62 X 43.69mm Solder Lug Panel Mount

Electro Sonic:
Res Wirewound Rheostat 10K Ohm 10% 25W 1Elec/1MechTurn 6.35mm 57.16 X 39.62 X 43.69mm Solder Lug Panel Mount
