RY4S-ULDC12V

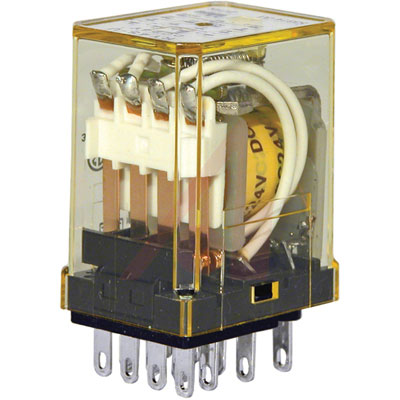

IDEC  RY4S-ULDC12V  插入式继电器

Silver Contact , RY Series General Purpose Miniature Relay

General purpose relay with 3 amp capacity on DPDT and 5 amp capacity on 4PDT, solder terminals and plug-in mounting.

.

* Specifications. Contact Material:** Fine silver gold-plated. ** Contact Resistance:** 50 MΩ max. initial value. ** Operate Time:** 20 mS max. ** Operating Temperature:** -22°F to +158°F -30° to+70°C. ** Frequency Response:** 1800 operations per hour. ** Power Consumption:** AC, approx. 1.1 VA 50 Hz; 1 VA 60 Hz. DC, approx. 0.8 W. UL listed, CSA certified.
