RCHS1901731BK1概述

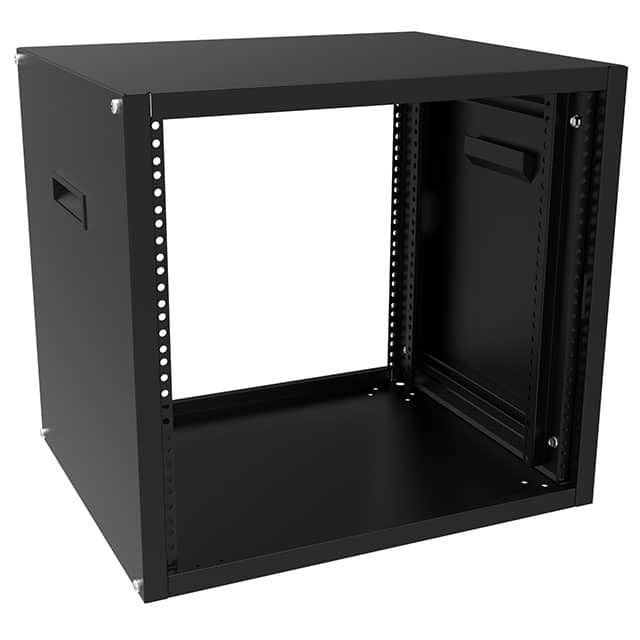

Rack, Cabinet; Desktop; 19In; 10U/17.5In; 31.5In Depth; Black; 800Lb Cap; RCHS Series

* Heavy Duty, 16-Gauge Steel, 19" Table Top Rack Cabinet

* Panel Rails Are Infinitely Adjustable Front to Back, Round Hole Punched for 10-32 Clip-Nuts to Full EIA Hole Centers 5⁄8-5⁄8-1⁄2 Inch Spacing

* Includes Two Pairs of Rails for Rear Support of Heavier Equipment, Rubber Feet, Black ABS Plastic Handles, a Starter Pack of 10-32 Clip Nuts and Matching 1421ABK Black Screws

* Supplied Unassembled Four Cabinet Pieces and Four Rails, Shipped in a Flat Pack Container for Handling Ease and Protection

* Simple Assembly Using One Bolt in Each Corner to Lock the Sides to the Top and Bottom Hardware Included

* Overall Width 21"

* Overall Height 2" Over Panel Space

* Front and Back Lip is 0.585" So Usable Depth Is Reduced by 1.17"

* Recommended Maximum Weight RCHS1902824 Tested — 800 Pounds

* Rugged Textured Powder Paint Finish

RCHS1901731BK1中文资料参数规格
物理参数

颜色 Black

材质 Steel

重量 33.6 kg

其他

产品生命周期 Active

包装方式 Box

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 9403200020

数据手册

在线购买RCHS1901731BK1
型号: RCHS1901731BK1
制造商: Hammond Manufacturing
描述:Rack, Cabinet; Desktop; 19In; 10U/17.5In; 31.5In Depth; Black; 800Lb Cap; RCHS Series
