RCHV1901424BK1概述

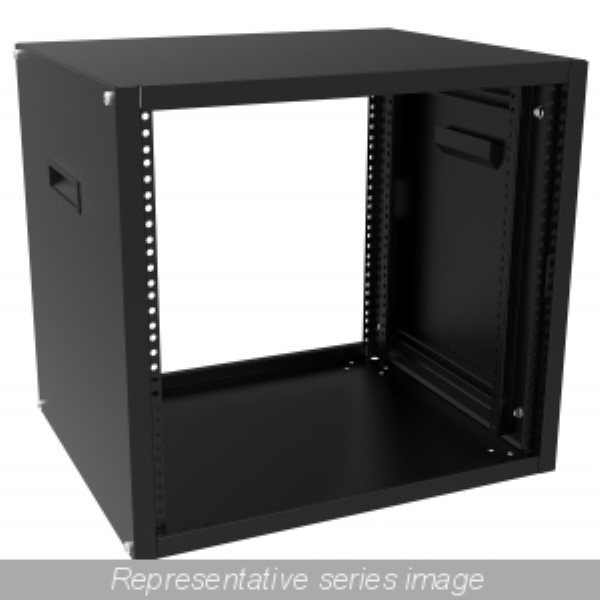

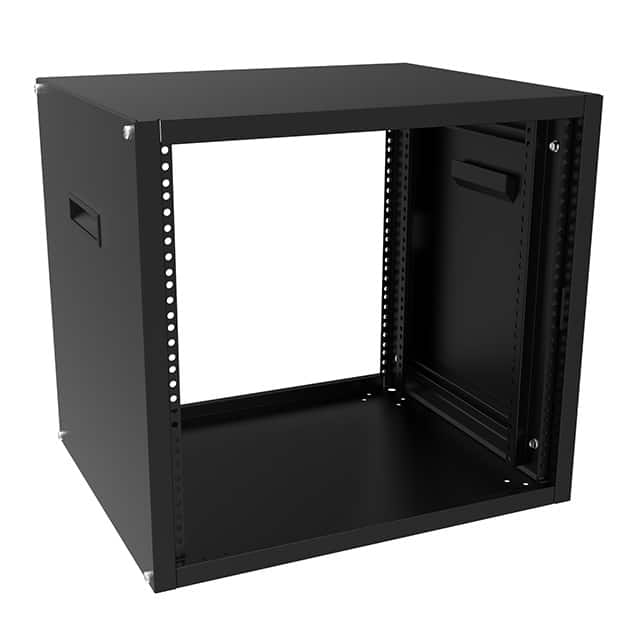

机架和机柜 Rack - Vented 14" x 24.5"

* Heavy Duty, 16-Gauge Steel, 19" Table Top Rack Cabinet

* Panel Rails Are Infinitely Adjustable Front to Back, Round Hole Punched for 10-32 Clip-Nuts to Full EIA Hole Centers 5⁄8-5⁄8-1⁄2 Inch Spacing

* Includes Two Pairs of Rails for Rear Support of Heavier Equipment, Rubber Feet, Black ABS Plastic Handles, a Starter Pack of 10-32 Clip Nuts and Matching 1421ABK Black Screws

* Supplied Unassembled Four Cabinet Pieces and Four Rails, Shipped in a Flat Pack Container for Handling Ease and Protection

* Simple Assembly Using One Bolt in Each Corner to Lock the Sides to the Top and Bottom Hardware Included

* Overall Width 21"

* Overall Height 2" Over Panel Space

* Front and Back Lip is 0.585" so Usable Depth is Reduced By 1.17"

* Recommended Maximum Weight RCHS1902824 Tested — 800 Pounds

* Rugged Textured Powder Paint Finish

* Stocked in Black and Light Gray RAL7035

RCHV1901424BK1中文资料参数规格
封装参数

封装 Metal

外形尺寸

长度 24.5 in

宽度 483 mm

高度 16 in

封装 Metal

物理参数

外壳颜色 Black

颜色 Black

材质 Steel

重量 25.4 kg

其他

产品生命周期 Active

包装方式 Box

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买RCHV1901424BK1
型号: RCHV1901424BK1
制造商: Hammond Manufacturing
描述:机架和机柜 Rack - Vented 14" x 24.5"
