RCHV1901431CG1

RCHV1901431CG1图片1
RCHV1901431CG1图片2
RCHV1901431CG1图片3
RCHV1901431CG1图片4
RCHV1901431CG1图片5
RCHV1901431CG1图片6
RCHV1901431CG1概述

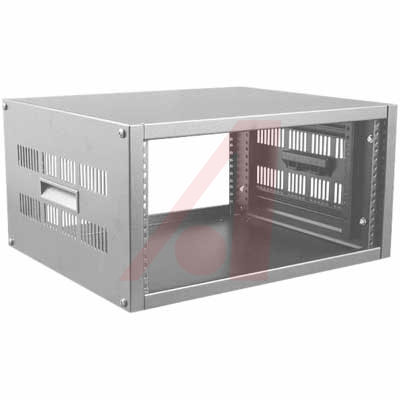

HAMMOND RCHV1901431CG1 19Inch Cabinet, Rack Mount, Vented, KD, Desktop, 14 ", 356mm, 483mm, 800mm, Steel

* Heavy Duty, 16-Gauge Steel, 19" Table Top Rack Cabinet

* Panel Rails Are Infinitely Adjustable Front to Back, Round Hole Punched for 10-32 Clip-Nuts to Full EIA Hole Centers 5⁄8-5⁄8-1⁄2 Inch Spacing

* Includes Two Pairs of Rails for Rear Support of Heavier Equipment, Rubber Feet, Black ABS Plastic Handles, a Starter Pack of 10-32 Clip Nuts and Matching 1421ABK Black Screws

* Supplied Unassembled Four Cabinet Pieces and Four Rails, Shipped in a Flat Pack Container for Handling Ease and Protection

* Simple Assembly Using One Bolt in Each Corner to Lock the Sides to the Top and Bottom Hardware Included

* Overall Width 21"

* Overall Height 2" Over Panel Space

* Front and Back Lip is 0.585" so Usable Depth is Reduced By 1.17"

* Recommended Maximum Weight RCHS1902824 Tested — 800 Pounds

* Rugged Textured Powder Paint Finish

* Stocked in Black and Light Gray RAL7035

RCHV1901431CG1中文资料参数规格
外形尺寸

宽度 483 mm

物理参数

外壳颜色 Beige

颜色 Beige

材质 Steel

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买RCHV1901431CG1
型号: RCHV1901431CG1
制造商: Hammond Manufacturing
描述:HAMMOND RCHV1901431CG1 19Inch Cabinet, Rack Mount, Vented, KD, Desktop, 14 ", 356mm, 483mm, 800mm, Steel
