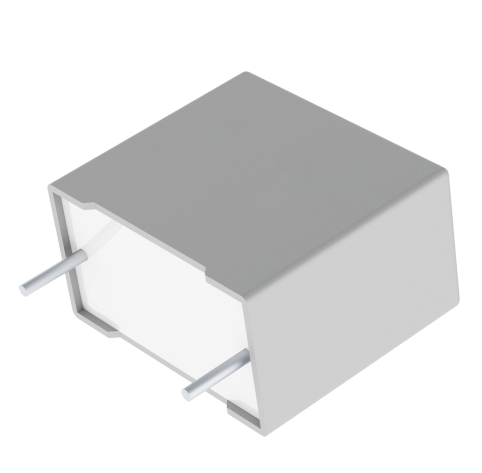

R474R368050A1K图片1

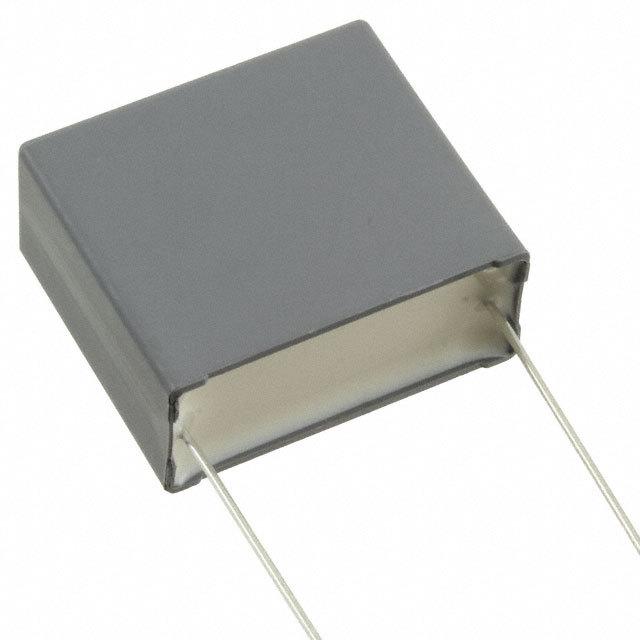

R474R368050A1K图片2
R474R368050A1K图片3
R474R368050A1K图片4
R474R368050A1K图片5
R474R368050A1K图片6
R474R368050A1K图片7
R474R368050A1K图片8
R474R368050A1K概述

KEMET  R474R368050A1K  膜电容, R47系列, 0.68 µF, ± 10%, X2, 径向引线, 110 °C

The R47 series capacitors from Kemet are radial leaded, class X2 metalized polypropylene film EMI suppression capacitors. These capacitors are made of metalized polypropylene film encapsulated with self extinguishing resin in a box of material meeting the requirements of UL94 V-0 standard. It is used as electromagnetic interference EMI suppression in across the line applications requiring X2 safety classification. Intended for use in situations where capacitor failure would not result in exposure to electric shock.

.
Capacitance values ranges from 0.0047µF to 2.2µF
.
Voltage rating is 440VAC at 50/60Hz
.
Lead spacing of 27.5mm and 37.5mm
.
Available in ±10%, ±20% tolerance
.
Operating temperature range from -40˚C to 110˚C
.
ENEC, UL, cUL approved
.
100% screening factory test at 2200VDC/1500VAC
.
Self healing properties
R474R368050A1K中文资料参数规格
技术参数

额定电压DC 1000 V

额定电压AC 440 V

电容 0.68 µF

容差 ±10 %

产品系列 R47

工作温度Max 110 ℃

工作温度Min -40 ℃

封装参数

安装方式 Through Hole

引脚数 2

封装 Tray

引脚间距 27.5 mm

外形尺寸

长度 32 mm

宽度 14 mm

高度 28 mm

脚长度 25 mm

封装 Tray

引脚间距 27.5 mm

物理参数

工作温度 -40℃ ~ 110℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 Power Management, 工业, Industrial, 便携式器材, Consumer Electronics, Portable Devices, 电源管理, EMI,RFI 抑制, 消费电子产品

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册
