R2E220-AA40-23

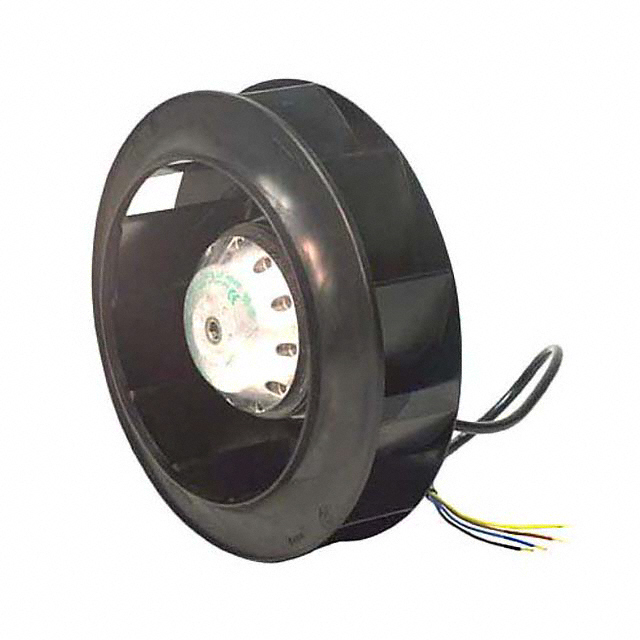

R2E220-AA40-23图片1
R2E220-AA40-23图片2
R2E220-AA40-23图片3
R2E220-AA40-23图片4
R2E220-AA40-23图片5
R2E220-AA40-23图片6
R2E220-AA40-23图片7
R2E220-AA40-23概述

EBM PAPST  R2E220-AA40-23  扇风机, 离心, 后倾式, R2E220系列, 电动叶轮, 230 VAC, 220 mm, 63 mm, 530 cu.ft/min

The is a 230VAC single inlet Centrifugal Fan with ball bearing, wire leaded power connection and 1-phase 2-pole motor with operating capacitor. Completely made of plastic PA6.6 impeller. Backward curved features extremely long blade, these impellers are high resistant to the dirt and dust and their hydraulic efficiency is very high. Clockwise direction of rotation seen on rotor.

.
2550RPM Speed rating
.
100W Rated power
.
55° Maximum temperature
R2E220-AA40-23中文资料参数规格
技术参数

额定功率 100 W

工作温度Max 55 ℃

额定电压 230 V

电源电压 230 VAC

外形尺寸

宽度 71 mm

高度 73 mm

物理参数

重量 1.3 kg

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买R2E220-AA40-23
型号: R2E220-AA40-23
制造商: Papst
描述:EBM PAPST  R2E220-AA40-23  扇风机, 离心, 后倾式, R2E220系列, 电动叶轮, 230 VAC, 220 mm, 63 mm, 530 cu.ft/min
替代型号R2E220-AA40-23
型号/品牌 代替类型 替代型号对比

R2E220-AA40-23

Papst

当前型号

当前型号

R2E220-RA38-13

Papst

功能相似

R2E220-AA40-23和R2E220-RA38-13的区别

R2E220AA4498

Papst

功能相似

R2E220-AA40-23和R2E220AA4498的区别

R3G220-RC05-03

Papst

功能相似

R2E220-AA40-23和R3G220-RC05-03的区别
