串联 20mA
系列 电压基准 IC ±0.1% 8-SOIC
得捷:
IC VREF SERIES 0.1% 8SOIC
立创商城:
串联 20mA
艾睿:
Even in the event of large power supply variations, this REF43GSZ-REEL voltage reference power management device from Analog Devices can produce and maintain a precise DC voltage. With an output that has a voltage of 2.5 V, this is power management at its best. It has an initial accuracy of 0.1%. Use this part at voltages lower than 40 V. This voltage reference circuit supports series topology. At a load regulation of 20ppm/mA and line regulation of 2ppm/V your circuit is capable of maintaining a constant voltage level at your output. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It runs with a maximum temperature coefficient of 25ppm/°C. This voltage reference circuit has an operating temperature range of -40 °C to 85 °C.
安富利:
V-Ref Precision 2.5V 20mA 8-Pin SOIC N T/R
Chip1Stop:
V-Ref Precision 2.5V 20mA 8-Pin SOIC N T/R
Verical:
V-Ref Precision 2.5V 20mA 8-Pin SOIC N T/R
Win Source:
IC VREF SERIES 0.1% 8SOIC / Series Voltage Reference IC Fixed 2.5V V ±0.1% 20 mA 8-SOIC
容差 ±0.1 %
输入电压DC 40.0V max
输出电压 2.5 V
输出电流 20 mA
供电电流 450 µA
通道数 1
输入电压Max 40 V
输出电压Max 2.5 V
输出电压Min 2.5 V
输出电流Max 20 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±0.1 %
输入电压 4.5V ~ 40V

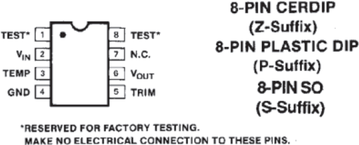

安装方式 Surface Mount
引脚数 8
封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 85℃
温度系数 ±25 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
REF43GSZ-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
REF43GSZ-REEL7 亚德诺 | 完全替代 | REF43GSZ-REEL和REF43GSZ-REEL7的区别 |
REF43GSZ 亚德诺 | 类似代替 | REF43GSZ-REEL和REF43GSZ的区别 |
REF43GPZ 亚德诺 | 类似代替 | REF43GSZ-REEL和REF43GPZ的区别 |
