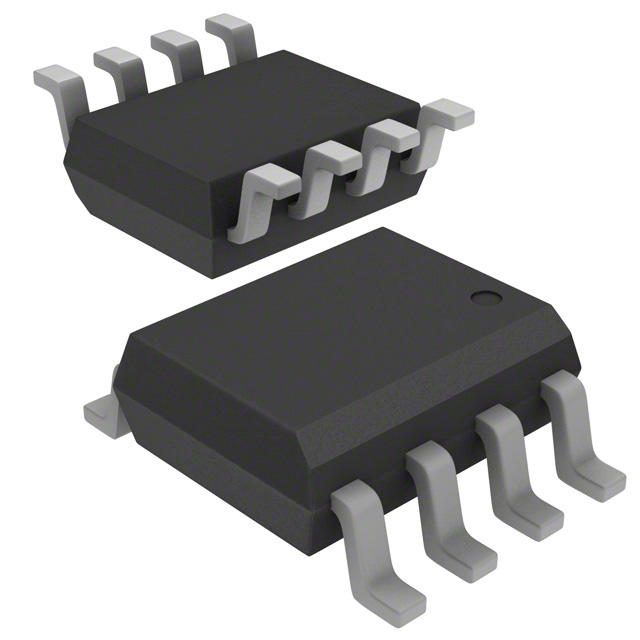

REF02CS-REEL

5 V精密基准电压源/温度传感器 5 V Precision Voltage Reference/Temperature Transducer

GENERAL DESCRIPTION

The REF02 precision voltage reference providesa stable5 V output that can be adjustedover a ±6% range with minimal effect on temperature stability. Single-supply operation over an input voltage range of7 V to40 V,low current drain of1 mA, and excellent temperature stability are achieved with an improved band gap design. Low cost, low noise,and low power make the REF02 anexcellent choice when ever a stable voltage reference is required. Applications include DACs and ADCs, portable instrumentation, and digital volt meters. The versatility ofthe REF02 is enhanced byits use as a monolithic temperature transducer. For new designs, refer to the ADR02.

FEATURES

5 V output: ±0.3% maximum

Temperature voltage output: 1.96 mV/°C

Adjustmentrange: ±3%minimum

Excellent temperature stability: 8.5 ppm/°C maximum

Low noise: 15µV p-p maximum

Low supply current: 1.4 mA maximum

Wide input voltage range: 7 V to 40 V

Highload-drivingcapability: 10 mA

No external components

Short-circuit proof
