R125055002

RADIALL  R125055002  射频/同轴连接器, SMA同轴, 直型插头, 焊接, 50 ohm, RG402, 黄铜

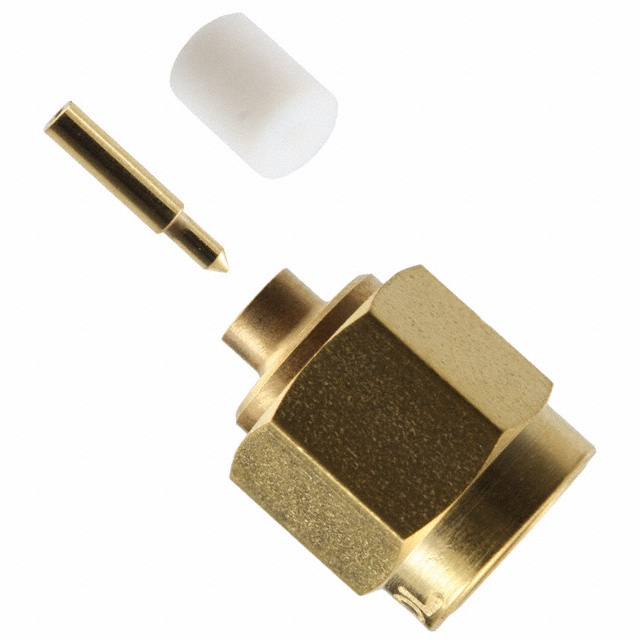

The is a straight SMA Plug with gold over nickel plated brass center contact, gold over nickel plated inox body, for 0.141 cable. This SMA series plug has PTFE insulation, cable mounting and solder termination. The stainless steel SMA connector has been designed for applications where reliability, durability, robustness and high frequency are very important. offers an extended frequency SMA range allowing coaxial system operation up to 27GHz. This series mates with the standard SMA series and maintains the same mechanical characteristics part numbers ending with 700, 701 or 702.

.

Subminiature coaxial connector

.

Screw-on coupling

.

High RF performance

.

Wide hermetically sealed range

.

Meets MIL-C-39012, EC 169-1, CECC 22110, CECC 22111 - 801 to 808 and BS 9210 N006 standards

.

-65 to 105°C Temperature rating
