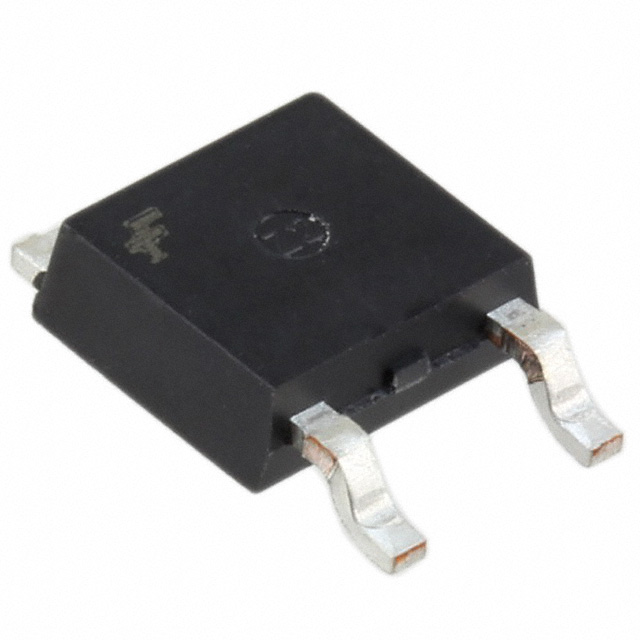

RC1117DX LDO电压调整器/稳压电源IC 可调/adj 1.1V TO-252 marking/标记 1117D 短路保护 过热保护
电路数量Number of Regulators| 1 \---|--- 输入电压VINVoltage - Input| 7.5V 输出电压VOUTVoltage - Output| 可调/adj 输出电流IoCurrent - Output| 1A 最大压降VDOVoltage - Dropout| 1.1V 带使能脚EN/CEON/OFF功能With Enable Pin| 无 No 最大耗散功率PdPower dissipation| Description & Applications| 1A Adjustable/Fixed Low Dropout Linear Regulator ;•Low dropout voltage •Load regulation: 0.05% typical •Trimmed current limit •On-chip thermal limiting • Active SCSI terminators • High efficiency linear regulators • Post regulators for switching supplies • Battery chargers • 5V to 3.3V linear regulators • Motherboard clock supplies 描述与应用| 1A可调/固定低压差线性稳压器;•低电压降 •负载调整率:0.05%(典型值) •电流限制 •片上热限制 •活跃SCSI终结 •高效率线性稳压器 •切换用品的邮政监管机构 •电池充电器 •5V到3.3V线性稳压器 •主板时钟用品
输出接口数 1
输出电压 1.25V ~ 6.3V
输出电流 1 A
耗散功率 18 W
静态电流 13 mA
跌落电压 1.1V @1A
输入电压Max 7.5 V
工作温度Max 125 ℃
工作温度Min 0 ℃
输入电压 ≤7.5 V
安装方式 Surface Mount
封装 TO-252-3
长度 6.73 mm
宽度 6.22 mm
高度 2.39 mm
封装 TO-252-3
工作温度 0℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
