RE220-HP

ROTH ELEKTRONIK  RE220-HP  电路板, Eurocard, FR2, 环氧纸, 1.5mm, 100mm x 160mm

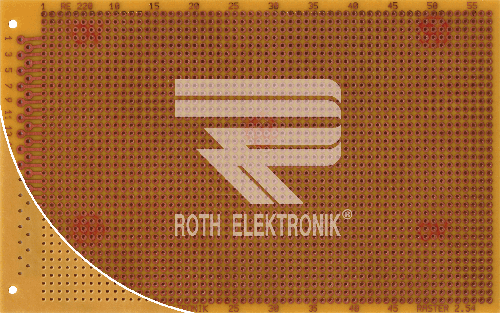

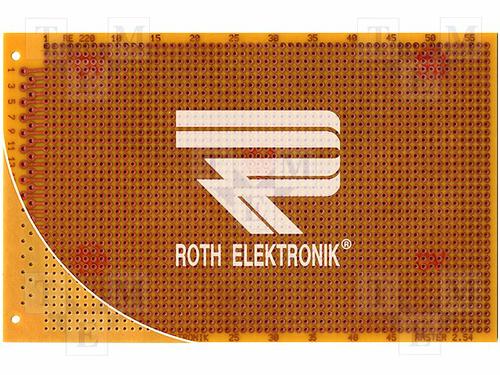

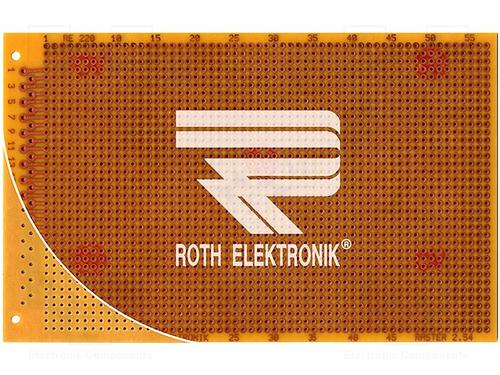

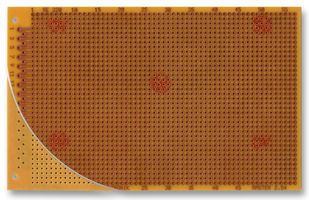

The is a prototyping board used for building and testing circuit solutions.

.

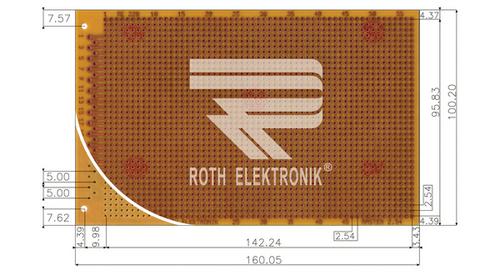

Board size is 100mm x 160mm

.

SRBP paper FR2 1.5mm thick

.

Single sided 35µm Cu

.

Organic soldering protection

.

Hole spacing 2.54mm x 2.54mm

.

37 x 58 soldering pads 2.20mm

.

Hole diameter is 1.00mm

.

31 channel DIN 41617 connector
