RP73PF1J110RBTDF

TE CONNECTIVITY  RP73PF1J110RBTDF  片式电阻器, 表面贴装, 薄膜, RP73系列, 110 ohm, 100 V, 0603 [1608公制], 166 mW, ± 0.1%

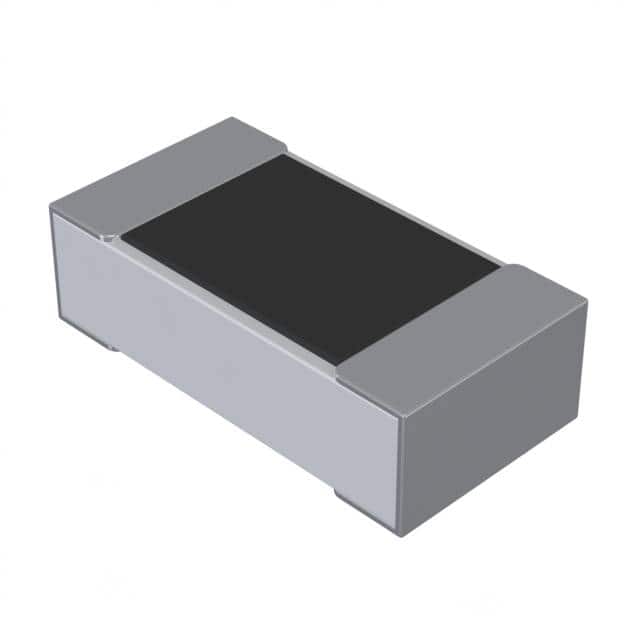

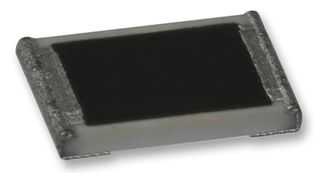

The RP73 resistor series is a stable thin film chip resistor range offering increased power dissipation, higher temperature capabilities and increased working voltages compared to the standard RN73 series. The resistor is produced by sputtering a metal film onto high grade alumina and protecting with three complete printed layers. Values are normally offered in E96 and E24 series. The RP73 resistor has accurate and uniform physical dimensions to reduce placement problems.

立创商城:
110Ω ±0.1% 166.667mW

得捷:
RES SMD 110 OHM 0.1% 1/6W 0603

e络盟:
SMD片式电阻, 薄膜, 0603 [1608公制], 110 ohm, RN73系列, 100 V, 薄膜, 166 mW

艾睿:
Res Thin Film 0603 110 Ohm 0.1% 0.167W ±25ppm/°C Epoxy Pad SMD Medical T/R

Allied Electronics:
Thin Film Fixed Resistor 0603 Case 110Ohm +/-0.1% 0.166W +/-25ppm/degC

Newark:
# TE CONNECTIVITY  RP73PF1J110RBTDF  Surface Mount Thin Film Resistor, RP73 Series, 110 ohm, 166 mW, - 0.1%, 100 V
