2A 无锁存

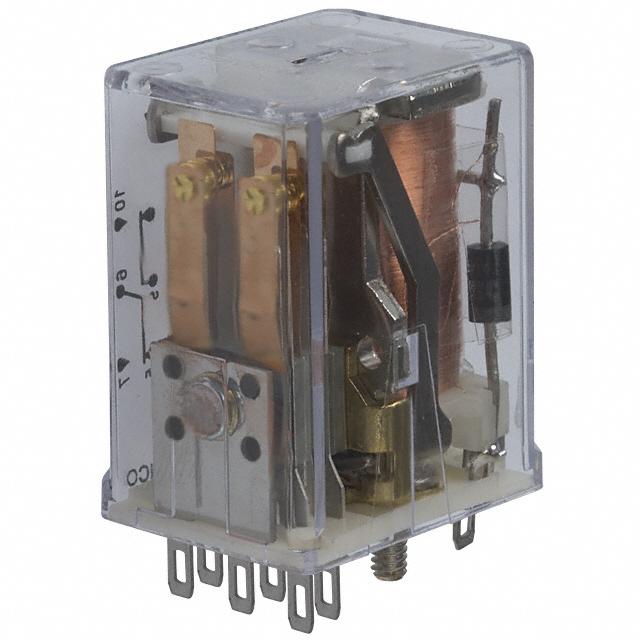

General Purpose Relay 6PDT 6 Form C Socketable
立创商城:
2A 无锁存
得捷:
RELAY GENERAL PURPOSE 6PDT 2A
艾睿:
Signal Relay 70VDC 7.5A 6PDT29.6x18.7x30.15mm Socket
Allied Electronics:
R10-E1Z6-J2.5K=R10, 8-1393766-3
Chip1Stop:
Electromechanical Relay 6PDT 2A 70VDC 2.5KOhm Plug-In
Verical:
Signal Relay 70VDC 7.5A 6PDT29.6x18.7x30.15mm Socket
MASTER:
Signal Relay 70VDC 7.5A 6PDT29.6x18.7x30.15mm Socket
Electro Sonic:
Signal Relay 70VDC 7.5A 6PDT29.6x18.7x30.15mm Socket
额定电压DC 28 V
额定电压AC 120 V
触点额定电流 2 A
线圈电压 70 V
线圈电流 28 mA
线圈功率DC 250 mW
线圈电阻 2.5 kΩ
额定电流Max 2 A
线圈电压DC 70 V
线圈功率 250 mW
开关电流Max 7.5 A
工作温度Max 75 ℃
工作温度Min -55 ℃
安装方式 Plug In, Solder Lug
引脚数 20
封装 -
长度 34.93 mm
宽度 18.67 mm
高度 30.15 mm
封装 -
触点材质 Silver
工作温度 -55℃ ~ 75℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410050
