RW1S0BAR033FET

RW1S0BAR033FET图片1
RW1S0BAR033FET图片2
RW1S0BAR033FET图片3
RW1S0BAR033FET图片4
RW1S0BAR033FET图片5
RW1S0BAR033FET图片6
RW1S0BAR033FET图片7
RW1S0BAR033FET图片8
RW1S0BAR033FET图片9
RW1S0BAR033FET图片10
RW1S0BAR033FET概述

0.033Ω ±1% 1W ±90ppm/℃

33 ±1% 1W 芯片 2512 J 形引线 电流检测 绕线


艾睿:
Res Wirewound 0.033 Ohm 1% 1W ±90ppm/°C J-Lead SMD T/R


Chip1Stop:
Res Wirewound 0.033 Ohm 1% 1W 90ppm/ C Molded J-Lead SMD T/R


Verical:
Res Wirewound 0.033 Ohm 1% 1W ±90ppm/C Molded J-Lead SMD T/R


MASTER:
Res Wirewound 0.033 Ohm 1% 1W ±90ppm/°C J-Lead SMD T/R


Online Components:
Res Wirewound 0.033 Ohm 1% 1W ±90ppm/°C J-Lead SMD T/R


Electro Sonic:
Res Wirewound 0.033 Ohm 1% 1W ±90ppm/°C J-Lead SMD T/R


RW1S0BAR033FET中文资料参数规格
技术参数

额定电压DC 50.0 V

额定功率 1 W

产品系列 RW

电阻 33 mΩ

阻值偏差 ±1 %

工作温度Max 150 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

引脚数 2

封装 SMD

外形尺寸

长度 6.25 mm

宽度 3.45 mm

高度 3.45 mm

封装 SMD

物理参数

工作温度 -55℃ ~ 150℃

温度系数 ±90 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8533210030

数据手册

RW1S0BAR033FET引脚图与封装图
RW1S0BAR033FET引脚图

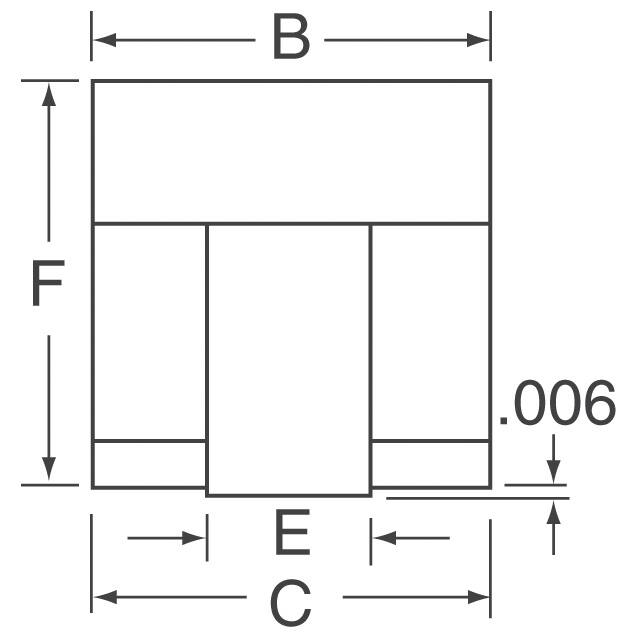

RW1S0BAR033FET封装图
RW1S0BAR033FET封装焊盘图
在线购买RW1S0BAR033FET
型号: RW1S0BAR033FET
制造商: Ohmite
描述:0.033Ω ±1% 1W ±90ppm/℃
