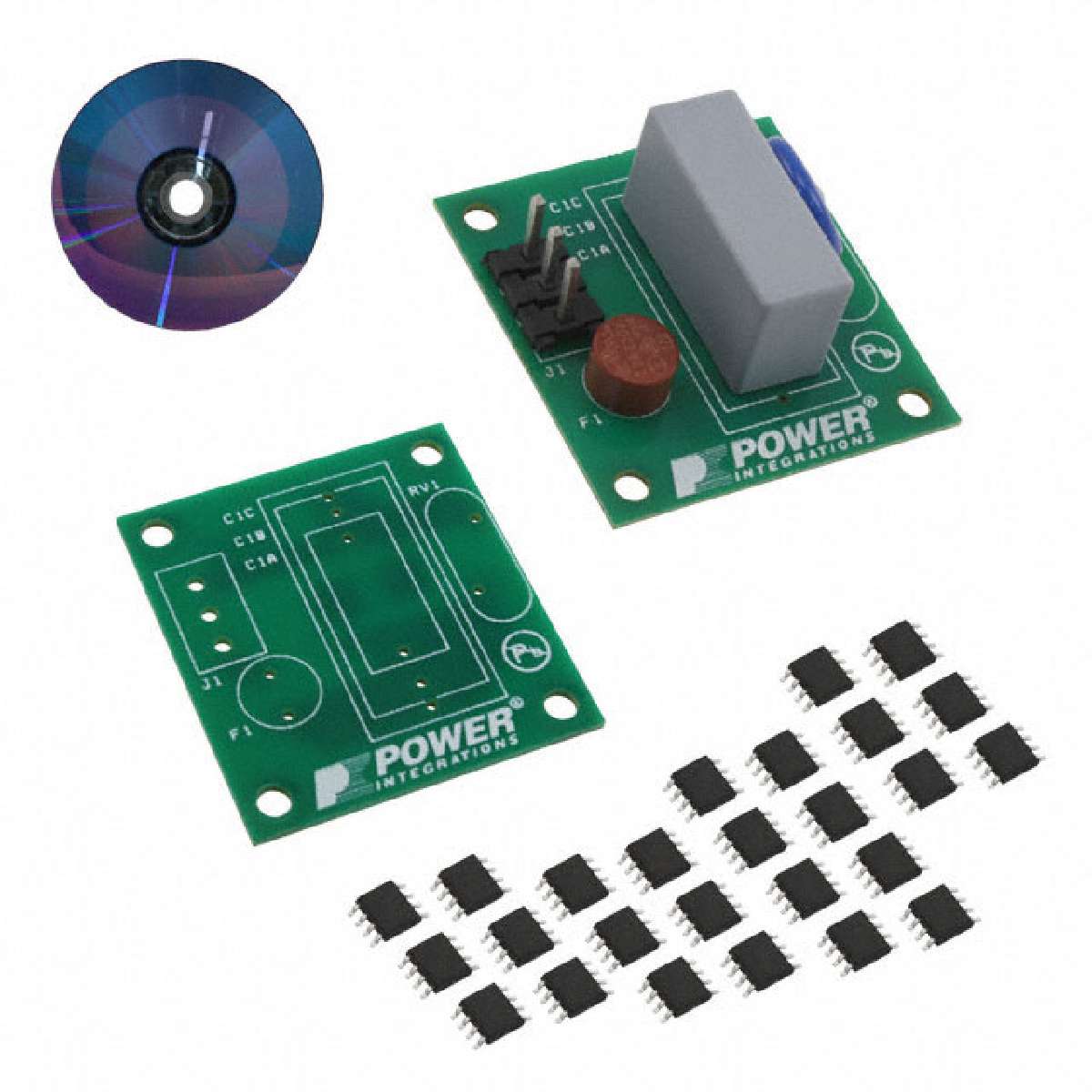

RDK-252

电源管理IC开发工具 CAPZero Ref Des Kit Active Discharge

This demonstration board employs the CAP014DG. It operates over a universal input range. It has been designed and tested to operate with an ambient temperature environment of up to 105 °C. Useful for safely discharging the X capacitor.

.

Very low no-load input power <5 mW actual dissipation

.

Passes surge testing to EN6100-4-5 Class 4 2 kV DM / 4 kV CM

.

Safely discharges the X capacitor with a time constant of less than 1 second
