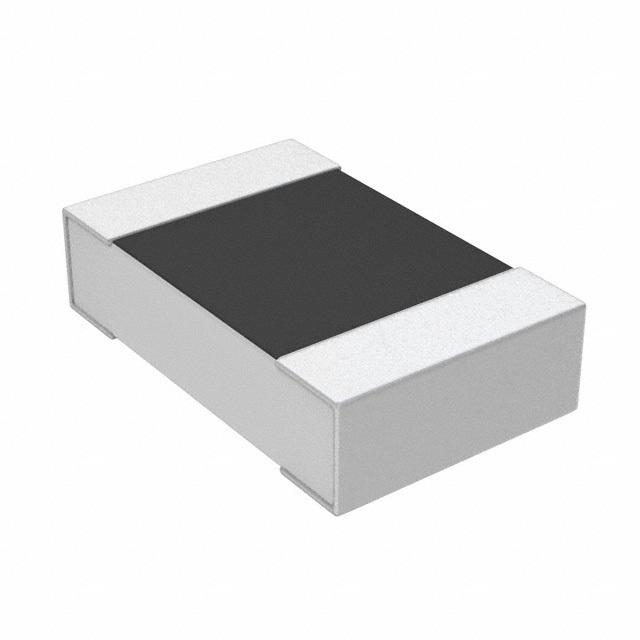

TE CONNECTIVITY RP73PF2A5K62BTDF 片式电阻器, 表面贴装, 薄膜, RP73系列, 5.62 kohm, 150 V, 0805 [2012公制], 250 mW, ± 0.1%
The RP73 resistor series is a stable thin film chip resistor range offering increased power dissipation, higher temperature capabilities and increased working voltages compared to the standard RN73 series. The resistor is produced by sputtering a metal film onto high grade alumina and protecting with three complete printed layers. Values are normally offered in E96 and E24 series. The RP73 resistor has accurate and uniform physical dimensions to reduce placement problems.
立创商城:
5.62kΩ ±0.1% 250mW
得捷:
RES SMD 5.62K OHM 0.1% 1/4W 0805
e络盟:
SMD片式电阻, 0805 [2012公制], 5.62 kohm, RP73P Series, 150 V, 薄膜, 250 mW
艾睿:
Res Thin Film 0805 5.62K Ohm 0.1% 0.25W1/4W ±25ppm/°C Epoxy Pad SMD Medical T/R
Allied Electronics:
Thin Film Fixed Resistor 0805 Case 5.62kOhm +/-0.1% 0.25W +/-25ppm/degC
Verical:
Res Thin Film 0805 5.62K Ohm 0.1% 0.25W1/4W ±25ppm/C Pad SMD Medical T/R
Newark:
# TE CONNECTIVITY RP73PF2A5K62BTDF Surface Mount Thin Film Resistor, RP73 Series, 5.62 kohm, 250 mW, - 0.1%, 150 V
Electro Sonic:
Res Thin Film 0805 5.62K Ohm 0.1% 0.25W1/4W ±25ppm/°C Epoxy Pad SMD T/R
额定电压DC 150 V
额定功率 250 mW
产品系列 RP73/RP73P
电阻 5.62 kΩ
阻值偏差 ±0.1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 150 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.55 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 155℃
温度系数 ±25 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RP73PF2A5K62BTDF TE Connectivity 泰科 | 当前型号 | 当前型号 |
CPF0805B5K62E1 泰科 | 功能相似 | RP73PF2A5K62BTDF和CPF0805B5K62E1的区别 |
