以太网转串口开发套件,含232适配板,USB线、串口线

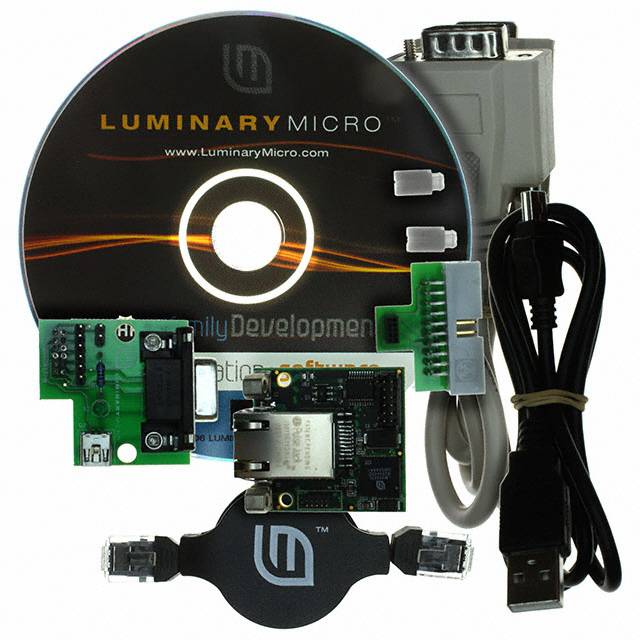

The is a Stellaris serial to Ethernet reference design kit offers a complete, open tool and ready to implement solution designed to add web connectivity to any serial device. Included in the RDK-S2E is the tiny footprint luminary micro Stellaris serial to Ethernet module MDL-S2E. The most common application for the MDL-S2E is for augmenting legacy products that only contain a serial port for a configuration or control interface. In addition, newer computers, especially laptop computers, do not necessarily have serial ports and a serial connection is limited by cable length typically 10m. Simply installing a Stellaris serial to Ethernet module into the legacy serial device provides many benefits including no major board redesign or software changes, easy sharing on a network other than Ethernet, tiny form factor for unobtrusive implementation and 10meter maximum cable length for serial connections is no longer a limitation.
- .
- 10/100Mbit Ethernet port
- .
- Auto MDI/MDIX cross over correction
- .
- Traffic and link indicators serial ports
- .
- UART ports include RTS/CTS for flow control, UART0 has RS232 levels, UART1 has CMOS/TTL levels
- .
- IP configuration with static IP address or DHCP
- .
- Telnet client for Ethernet based serial port extender
- .
- Module supports 5V and 3.3V supplies
- .
- Multiple mounting options
- .
- JTAG port pads for factory programming
- .
- JTAG port pads for factory programming
