RL90-18/00

EBM PAPST  RL90-18/00  扇风机, 离心, 径向, 前倾式, RL90AC系列, Flatpak, 115 VAC, 121 mm, 37 mm, 24.7 cu.ft/min

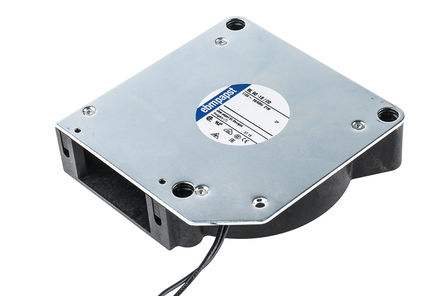

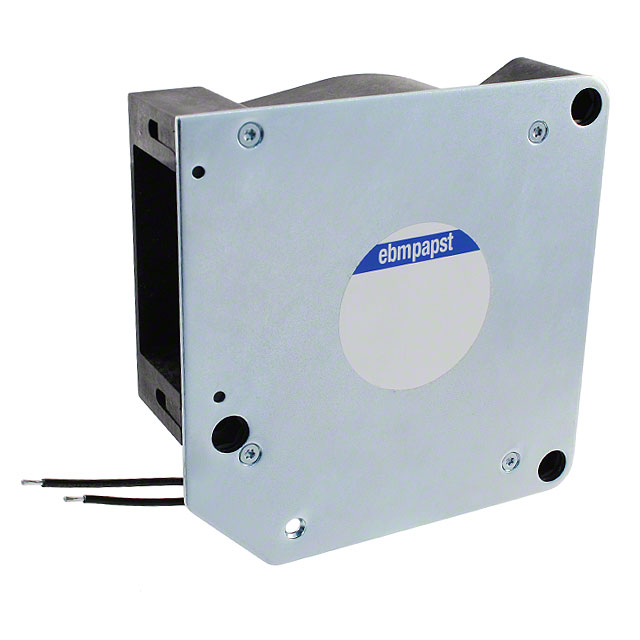

The is a 115VAC Centrifugal Compact Fan with Sintec sleeve bearing and wire leaded power connection. Scroll housing made of fibreglass-reinforced plastic PBT, housing base made of sheet steel, fibreglass-reinforced plastic impeller. Right direction of rotation looking at rotor, centrifugal air outlet via window in housing direction of air flow with 2 single strands 18AWG, TR 32 leads. Housing base with flat connector 6.3 x 0.8mm for protective earth, forward-curved impeller. The AC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.

.

2550RPM Speed rating

.

19.5W Rated power

.

-10 to 60°C Maximum ambient temperature range

.

Protected from overload using impedance protection
