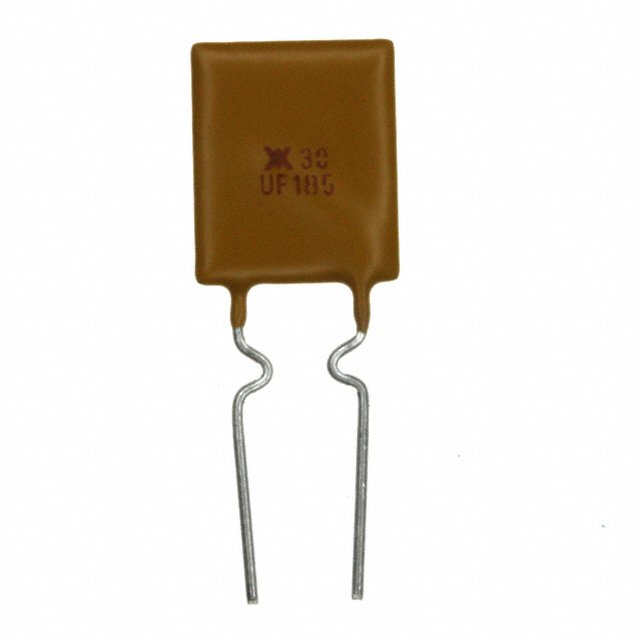

PTC Resettable Fuse 1.85Ahold 3.7Atrip 30V 100A 1W 8.7s 0.03Ω Radial 10.2 X 3 X 15.7mm Ammo
PTC Resettable Fuse 1.85Ahold 3.7Atrip 30V 100A 1W 8.7s 0.03Ohm Radial 10.2 X 3 X 15.7mm Ammo Pack
Verical:
PTC Resettable Fuse 1.85Ahold 3.7Atrip 30V 100A 1W 8.7s 0.03Ohm Radial 10.2 X 3 X 15.7mm Ammo
MASTER:
PTC Resettable Fuse 1.85Ahold 3.7Atrip 30V 100A 1W 8.7s 0.03Ohm Radial 10.2 X 3 X 15.7mm Ammo Pack
Online Components:
PTC Resettable Fuse 1.85Ahold 3.7Atrip 30V 100A 1W 8.7s 0.03Ohm Radial 10.2 X 3 X 15.7mm Ammo Pack
Electro Sonic:
PTC Resettable Fuse 1.85Ahold 3.7Atrip 30V 100A 1W 8.7s 0.03Ohm Radial 10.2 X 3 X 15.7mm Ammo Pack
额定电压DC 30.0 V
工作电压 30.0 V
跳闸时间 8.70 s
额定电流 1.85 A
耗散功率 1 W
电阻 0.09 Ω
保持电流 1.85 A
跳闸电流 3.7 A
额定电流Max 100 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 30 V
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 10.2 mm
宽度 3 mm
高度 15.7 mm
封装 Radial, Disc
厚度 3 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
