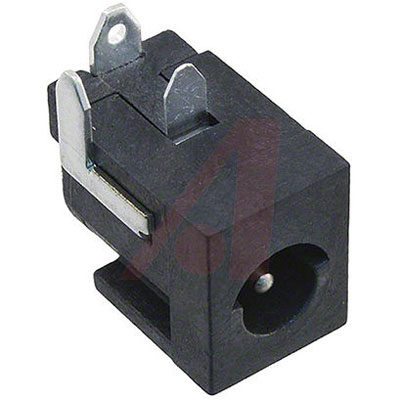

RAPC732X图片1

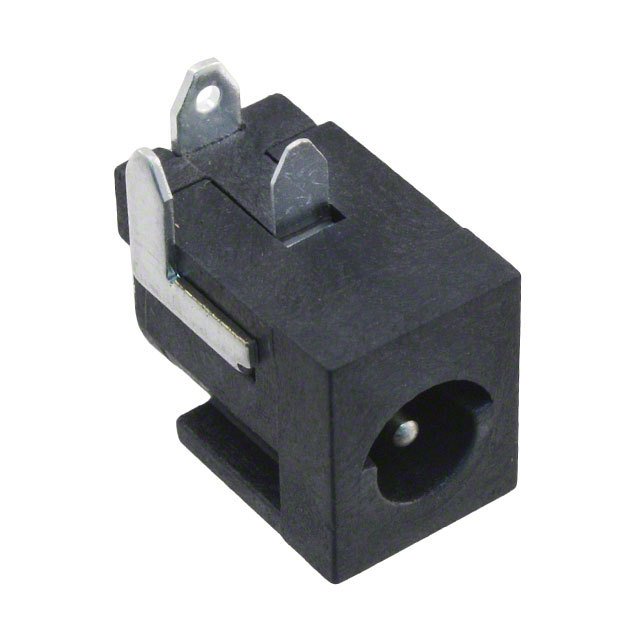

RAPC732X图片2
RAPC732X图片3
RAPC732X图片4
RAPC732X图片5
RAPC732X图片6
RAPC732X图片7
RAPC732X图片8
RAPC732X图片9
RAPC732X图片10
RAPC732X概述

SWITCHCRAFT  RAPC732X  孔式插座

Use the power connector from Switchcraft to power up your circuit with the least amount of losses. This PL connector"s 2 contacts that are made out of brass and plated with nickel. It has a plug type gender. This connector has a single port. It has a right angle body orientation. This device has a maximum current rating of 5 A. RAPC732X is housed in thermoplastic. This product comes packaged in bulk, so the parts will be stored loosely. Its 3 terminals use the solder termination method. This product is 9 mm long, 11 mm tall and 14.5 mm deep.

RAPC732X中文资料参数规格
技术参数

触点数 2

极性 Female

额定电流 5 A

绝缘电阻 30 MΩ

拔插次数 5000

额定电流Max 5 A

接触电阻Max 30 mΩ

封装参数

安装方式 Through Hole

外形尺寸

长度 9 mm

宽度 14.5 mm

高度 11 mm

物理参数

颜色 Black

触点材质 Brass

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买RAPC732X
型号: RAPC732X
制造商: Switchcraft / Conxall
描述:SWITCHCRAFT  RAPC732X  孔式插座
