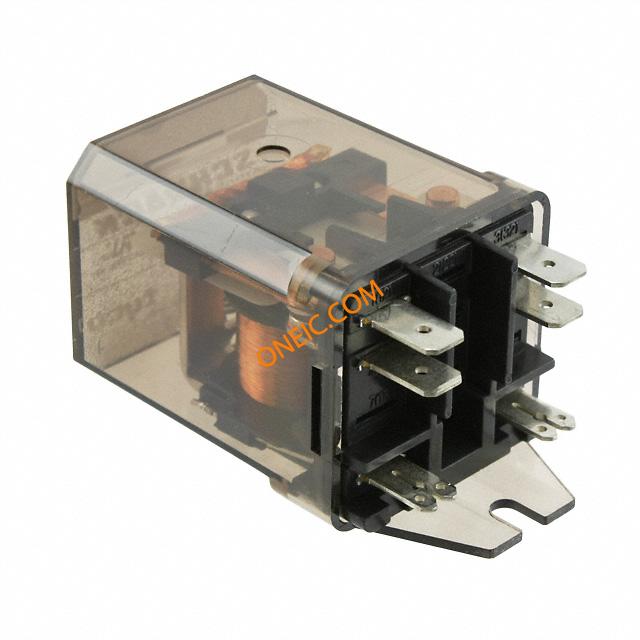

Electromechanical Relay 48VDC 2KΩ 30A SPST-NO 38.5mm 35.5mm 73.5mm Bracket Power Relay
Power Relay 48VDC 30A SPST-NO38.5x35.5x73.5mm Bracket
Product Highlights
RMC/D Series
Contact Arrangement = 1 Form X, SPST-NO-DM, 1 N/O Double Make
Contact Current Rating = 30 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
Chip1Stop:
Electromechanical Relay 48VDC 2KOhm 30A SPST-NO 38.5mm 35.5mm 73.5mm Bracket Power Relay
Verical:
Power Relay 48VDC 30A SPST-NO 38.5mm 35.5mm 73.5mm Bracket Mount
MASTER:
Power Relay 48VDC 30A SPST-NO38.5x35.5x73.5mm Bracket
Online Components:
Power Relay 48VDC 30A SPST-NO38.5x35.5x73.5mm Bracket
Electro Sonic:
Power Relay 48VDC 30A SPST-NO38.5x35.5x73.5mm Bracket
输入电压DC 48.0 V
跌落电压 4.80 V
触点额定电流 30.0 A
线圈电压 48 V
线圈电流 24 mA
线圈功率DC 1.20 W
线圈电阻 2 kΩ
线圈电压DC 48 V
线圈功率 1.2 W
安装方式 Bracket
长度 38.5 mm
宽度 35.5 mm
高度 73.5 mm
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 60℃
产品生命周期 End of Life
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
