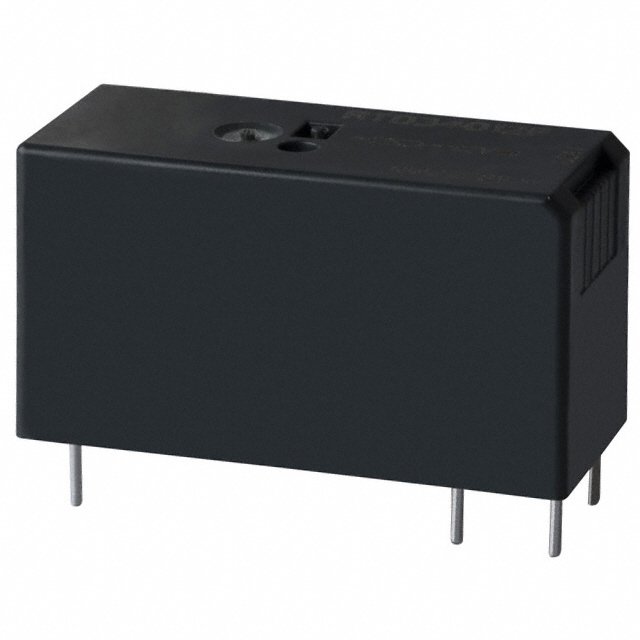

功率继电器, SPST-常开, 5 VDC, 16 A, RT1 Series, 通孔安装, 非闭锁
Power Relay 5VDC 16A SPST-NO29x12.7x15.7mm THT
Product Highlights
RT1 Series
Contact Arrangement = 1 Form A, SPST-NO, 1 N/O
Contact Current Rating = 16 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
得捷:
RELAY GEN PURPOSE SPST 16A 5V
立创商城:
5VDC 16A 无锁存
e络盟:
功率继电器, SPST-常开, 5 VDC, 16 A, RT1 Series, 通孔安装, 非闭锁
艾睿:
Power Relay 5VDC 16A SPST-NO29mm 12.7mm 15.7mm THT
Chip1Stop:
Electromechanical Relay SPST-NO 16A 5VDC 62Ohm Through Hole
Verical:
Power Relay 5VDC 16A SPST-NO 29mm 12.7mm 15.7mm Through Hole
MASTER:
Power Relay 5VDC 16A SPST-NO29x12.7x15.7mm THT
Online Components:
Power Relay 5VDC 16A SPST-NO29x12.7x15.7mm THT
Electro Sonic:
Power Relay 5VDC 16A SPST-NO29x12.7x15.7mm THT
输入电压DC 5.00 V
触点类型 SPST-NO
功耗 400 mW
跌落电压 500 mV
触点额定电流 16.0 A
线圈电压 5 VDC
线圈电流 80 mA
线圈功率DC 400 mW
线圈电阻 62 Ω
线圈电压DC 5 V
开关电流Max 16 A
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Through Hole
封装 DIP
长度 29 mm
宽度 12.7 mm
高度 15.7 mm
封装 DIP
触点材质 Silver Nickel
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410050
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RTD34005 TE Connectivity 泰科 | 当前型号 | 当前型号 |
G2RL-1A-DC5 欧姆龙 | 功能相似 | RTD34005和G2RL-1A-DC5的区别 |
G2RL-1A4-DC5 欧姆龙 | 功能相似 | RTD34005和G2RL-1A4-DC5的区别 |
G2RL-1A4-E-DC5 欧姆龙 | 功能相似 | RTD34005和G2RL-1A4-E-DC5的区别 |
