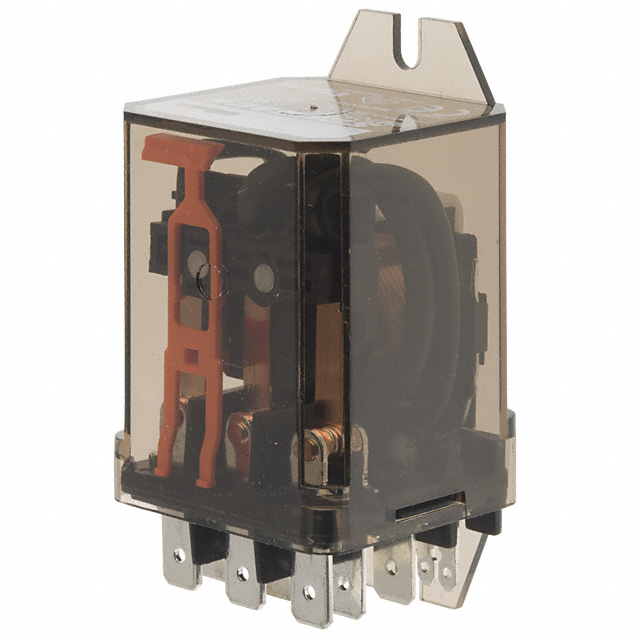

Power Relay 48VDC 25A DPDT 38.5mm 35.5mm 73.5mm Bracket Mount
Power Relay 48VDC 25A DPDT38.5x35.5x73.5mm Bracket
Product Highlights
RM8 Series
Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 25 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
艾睿:
Power Relay 48VDC 25A DPDT38.5x35.5x73.5mm Bracket
安富利:
Electromechanical Relay DPDT 25A 48VDC 2KOhm Bracket Mount
Chip1Stop:
Electromechanical Relay DPDT 25A 48VDC 2KOhm Bracket Mount
Verical:
Power Relay 48VDC 25A DPDT38.5mm 35.5mm 73.5mm Bracket
MASTER:
Power Relay 48VDC 25A DPDT38.5x35.5x73.5mm Bracket
Online Components:
Power Relay 48VDC 25A DPDT38.5x35.5x73.5mm Bracket
Electro Sonic:
Power Relay 48VDC 25A DPDT38.5x35.5x73.5mm Bracket
输入电压DC 48.0 V
触点类型 DPDT
跌落电压 4.80 V
触点额定电流 25.0 A
线圈电压 48 V
线圈电流 24 mA
线圈功率DC 1.20 W
线圈电阻 2 KΩ
额定电流Max 25 A
线圈电压DC 48 V
额定功率Max 6 kVA
开关电流Max 25 A
工作温度Max 65 ℃
工作温度Min -45 ℃
额定电压AC Max 400 V
安装方式 Bracket
长度 38.5 mm
宽度 35.5 mm
高度 73.5 mm
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 65℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
