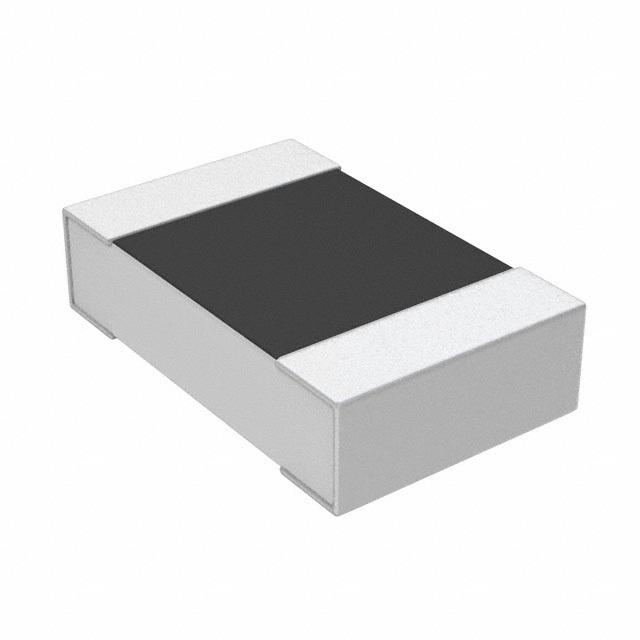

TE CONNECTIVITY / CGS RL73K2AR18JTD 电流感应电阻器, 表面安装, RL73系列, 0.18 ohm, 125 mW, ± 5%, 0805 [2012公制]
180 mOhms ±5% 0.125W,1/8W 芯片 0805(2012 公制) 电流检测 厚膜
得捷:
RES 0.18 OHM 5% 1/8W 0805
立创商城:
180mΩ ±5% 125mW
e络盟:
电流感应电阻器, 表面安装, 0.18 ohm, RL73系列, 0805 [2012公制], 125 mW, ± 5%, 厚膜
艾睿:
Use this RL73K2AR18JTD fixed single surface-mount resistor from TE Connectivity to obtain a visually clean layout. This product has a resistance value of 180m Ohm. This dependable part has a power rating of 0.125 1/8 W. It is also complete with current sensing technology. Its temperature coefficient is ±200 ppm/°C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 5%. This device is made with thick film technology. This product is 2 mm long, 0.55 mm tall and 1.25 mm deep.
安富利:
Res Thick Film 0805 0.18 Ohm 5% 1/8W ±200ppm/°C Molded SMD SMD Paper T/R
Verical:
Res Thick Film 0805 0.18 Ohm 5% 0.125W1/8W ±200ppm/C Pad SMD Automotive T/R
Newark:
# CGS - TE CONNECTIVITY RL73K2AR18JTD SMD Current Sense Resistors, RL73 Series, 0.18 ohm, 125 mW, - 5%, 1.11 V, 0805 [2012 Metric]
额定电压DC 1.11 V
容差 ±5 %
额定功率 125 mW
产品系列 RL73
电阻 0.18 Ω
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.55 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 155℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RL73K2AR18JTD TE Connectivity 泰科 | 当前型号 | 当前型号 |
5-1622825-5 泰科 | 类似代替 | RL73K2AR18JTD和5-1622825-5的区别 |
ERJ6RSFR18V 松下 | 功能相似 | RL73K2AR18JTD和ERJ6RSFR18V的区别 |
