R82IC2150Z350J

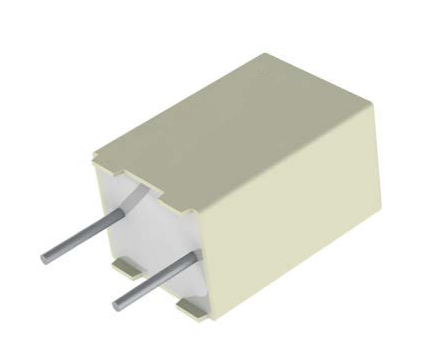

KEMET  R82IC2150Z350J  膜电容, AEC-Q200 R82系列, 0.015 µF, ± 5%, PET聚酯, 250 V

The R82 Series is constructed of metallized polyester film wound or stacked technology with radial leads of tinned wire. Radial leads are electrically welded to the contact metal layer on the ends of the capacitor winding. The capacitor is encapsulated with thermosetting resin in a box of material meeting the UL 94V-0 requirements. Automotive grade devices are available and meet the demanding Automotive Electronics Council"s AEC-Q200 qualification requirements. Typical applications include blocking, coupling, decoupling, timing and oscillator circuits. Not suitable for across-theline application see Suppressor Capacitors.

.

Voltage range: 50 - 400 VDC

.

Capacitance range: 0.001 µF - 4.7 µF / Capacitance tolerance: ±5%, ±10%, ±20%

.

Lead Spacing: 5 mm

.

Climatic category: 55/105/56 / Operating temperature range of -55°C to +105°C

.

Tape and reel packaging in accordance with IEC 60286-2

.

RoHS compliance and lead-free terminations

.

Self-healing

.

Automotive AEC-Q200 grades available
