RADIALL R143324000 射频/同轴连接器, TNC同轴, 直型隔板安装插座, 焊接, 50 ohm, RG179, RG187, RG188, RG316, 铍铜

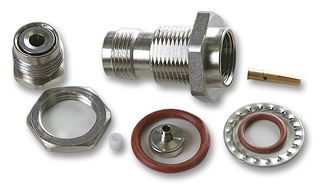

The is a straight Bulkhead TNC Jack, panel sealed, rear mount clamp type, with gold over nickel plated beryllium copper center contact, nickel plated brass body for 2.6/50 cable. This TNC series jack has PTFE insulation, panel mounting and solder termination, suitable for high power levels.
- .
- Screw-on equivalent to BNC bayonet series
- .
- Good RF performance
- .
- Long life and high strength
- .
- Meets MIL-C-39012/MIL STD 348A/313, IEC 60169-17 and CECC 22200 standards
- .
- -65 to 165°C Temperature rating
极性 Female
触点电镀 Gold
额定电压AC 500 V
绝缘电阻 5000 MΩ
拔插次数 500
工作温度Max 165 ℃
工作温度Min -65 ℃
安装方式 Panel
触点材质 Beryllium Copper
材质 Brass
绝缘材质 Teflon
产品生命周期 Active
包装方式 Bulk
制造应用 Avionics, 国防, 国防, 军用与航空, 军用与航空, 通信与网络, Communications & Networking, Aerospace, Defence, Military, 航空电子
RoHS标准 RoHS Compliant
军工级 Yes
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
R143324000 Radiall | 当前型号 | 当前型号 |
R143258000 Radiall | 完全替代 | R143324000和R143258000的区别 |
R143325000 Radiall | 完全替代 | R143324000和R143325000的区别 |
R143654000 Radiall | 完全替代 | R143324000和R143654000的区别 |
